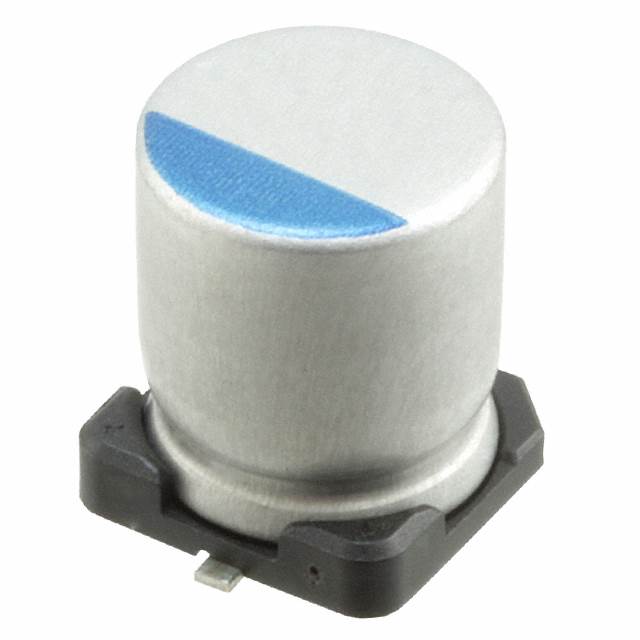

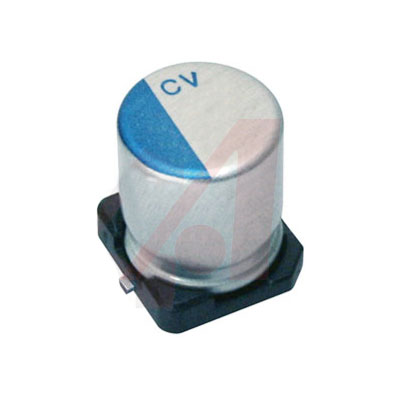

PCV1J220MCL6GS

Cap Aluminum Polymer 22uF 63VDC 20% 8 X 10mm SMD 0.037Ω 1700mA 3000H 105℃ Automotive T/R

**Specifications:

**

* High voltage Up to 63 V, Low ESR, High Ripple Current**

**

* Load Life of 3000 Hours at 105°C**

**

* SMD Type : Lead Free Reflow Soldering Condition at 260°C Peak Correspondence**

**

* Compliant to the RoHS Directive 2002/95/EC

立创商城:
22uF ±20% 63V

得捷:
CAP ALUM POLY 22UF 20% 63V SMD

艾睿:
The PCV1J220MCL6GS polymer capacitor, made from pure aluminum and developed by Nichicon, will handle all of your circuit&s;s voltage control needs. It can withstand a voltage of 63 VDC. It has 2 terminals. This product is 10 mm tall with a diameter of 8 mm. Its leakage current is 277@2Min μA. It has a tolerance of 20%. This conductive polymer aluminum solid capacitor has an operating temperature range of -55 °C to 105 °C.

Allied Electronics:
22uF 63 V Polymer Aluminium Electrolytic Capacitor, CV Series 3000h 8 x 10mm

安富利:
Cap Aluminum 22uF 63V 20% 8 X 10mm SMD 0.037 Ohm 1700mA 3000 hr 105°C T/R

Verical:
Cap Aluminum Polymer 22uF 63VDC 20% 8 X 10mm SMD 0.037 Ohm 1700mA 3000h 105C Automotive T/R
