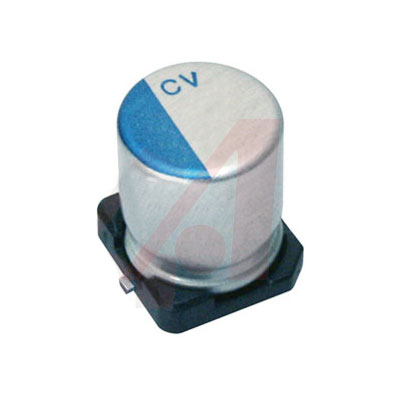

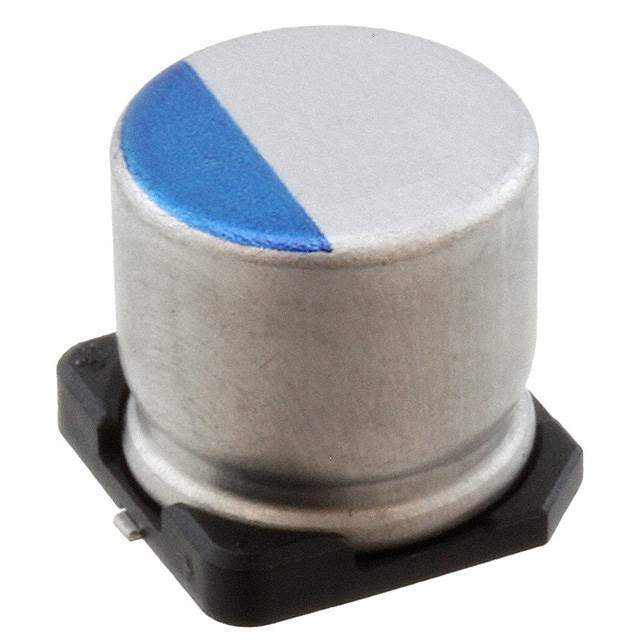

PCV1D331MCL1GS

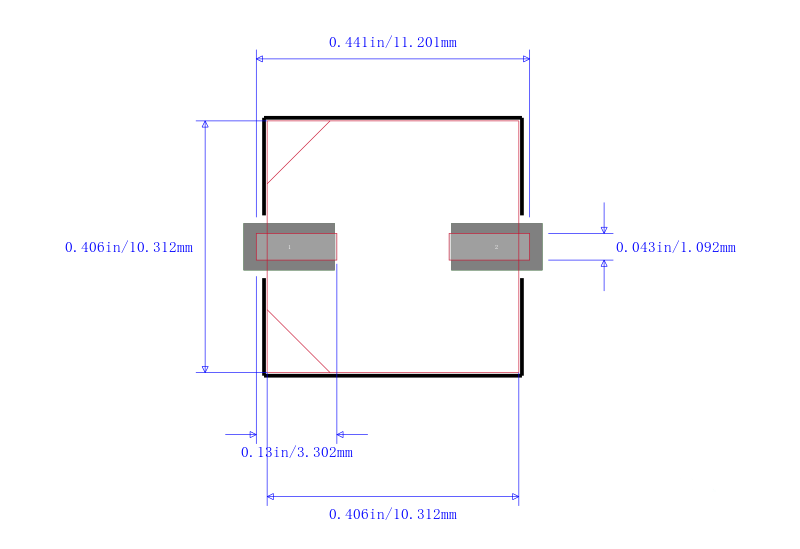

Cap Aluminum Polymer 330uF 20VDC 20% 10 X 12.7mm SMD 0.026Ω 2700mA 3000H 105℃ Automotive T/R

**Features:

**

* High voltage Up to 63 V, Low ESR, High Ripple Current**

**

* Load Life of 3000 Hours at 105°C**

**

* SMD Type : Lead Free Reflow Soldering Condition at 260°C Peak Correspondence**

**

* Compliant to the RoHS Directive 2002/95/EC

立创商城:
330uF ±20% 20V

贸泽:
Aluminum Organic Polymer Capacitors 330uF 20 Volts 20%

艾睿:
Cap Aluminum Polymer 330uF 20VDC 20% 10 X 12.7mm SMD 0.026 Ohm 2700mA 3000h 105°C Automotive T/R

Allied Electronics:
Capacitor; Aluminum Organic; Cap 330 uF; Tol 20%; Vol-Rtg 20 VDC; SMT; 10x12.7 mm

安富利:
Cap Aluminum 330uF 20V 20% 10 X 12.7mm Cylindrical 0.026 Ohm 2700mA 3000 hr 105°C T/R

Chip1Stop:
Cap Aluminum 330uF 20V 20% 10 X 12.7mm SMD 0.026 Ohm 2700mA 3000h 105 C T/R

Verical:
Cap Aluminum Polymer 330uF 20VDC 20% 10 X 12.7mm SMD 0.026 Ohm 2700mA 3000h 105C Automotive T/R

Newark:
# NICHICON  PCV1D331MCL1GS  Electrolytic Capacitor, 330 µF, 20 V, CV Series, Radial Can - SMD, -55 °C
