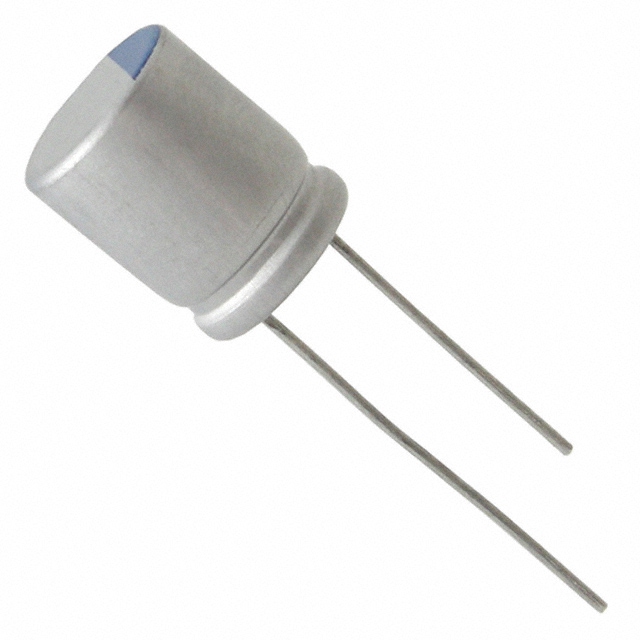

Cap Aluminum Polymer 18uF 100VDC 20% 10 X 13mm Radial 5mm 0.038Ω 2200mA 3000H 105℃ Automotive Ammo
18 µF 100 V 铝聚合物器 径向,Can - 105°C 时为 3000 小时
立创商城:
18uF ±20% 100V
艾睿:
Using one of Nichicon&s;s PLV2A180MDL1TD conductive polymer aluminum solid capacitors, you can be sure that any excess voltages entering your integrated circuits are properly absorbed. Users like its long lead wire form. It can withstand a voltage of 100 VDC. This part has a lead diameter of 0.6 mm. It has 2 terminals. This product is 13 mm tall with a diameter of 10 mm. This conductive polymer aluminum solid capacitor has an operating temperature range of -55 °C to 105 °C. The PLV2A180MDL1TD conductive polymer aluminum solid capacitor has a radial termination style. It has a tolerance of 20%. This product&s;s terminal pitch is 5 mm. Its leakage current is 360@2Min μA.
安富利:
Cap Aluminum 18uF 100V 20% 10 X 13mm Radial Cylindrical Can 5mm 0.038 Ohm 2200mA 3000 hr 105°C Ammo Pack
Chip1Stop:
Cap Aluminum 18uF 100V 20% 10 X 13mm Radial 5mm 0.038 Ohm 2200mA 3000h 105 C Ammo Pack
电容 18 µF
等效串联电阻ESR 38 mΩ
容差 ±20 %
纹波电流 2200 mA
纹波电流低频 2.2A @100kHz
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压 100 V
安装方式 Through Hole
引脚数 2

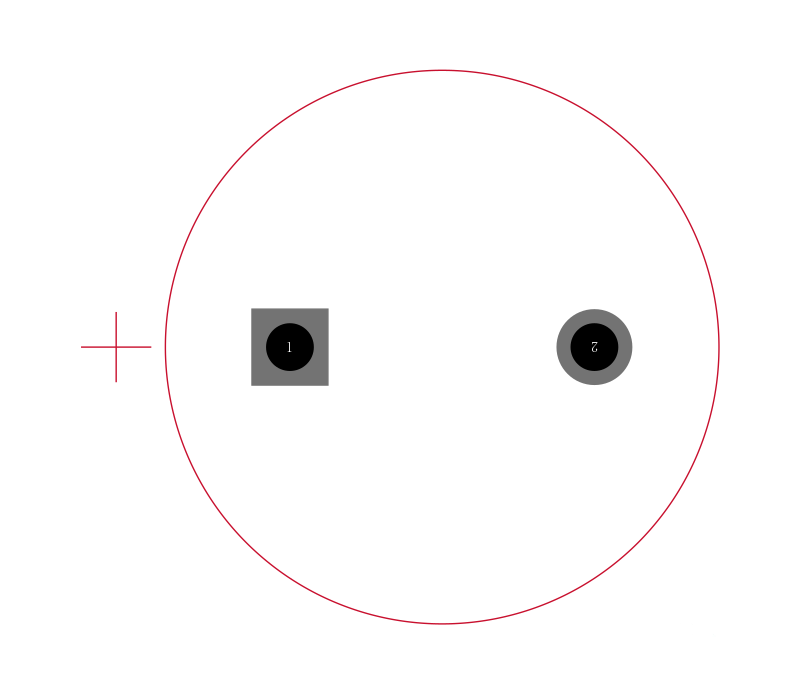

封装 Radial, CAN

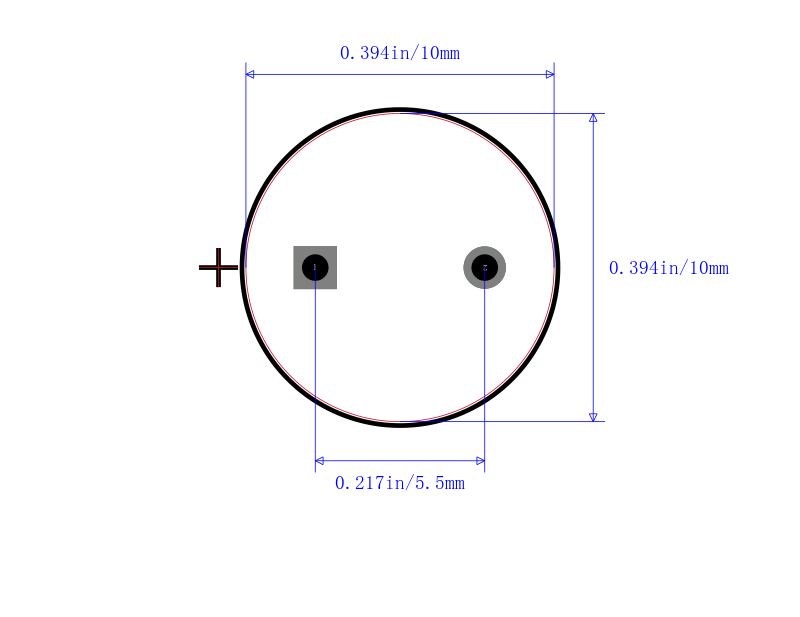

引脚间距 5 mm
高度 13 mm
直径 10 mm
封装 Radial, CAN
引脚间距 5 mm
工作温度 -55℃ ~ 105℃
产品生命周期 Active
寿命(小时) 3000h @105℃
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
PLV2A180MDL1TD Nichicon 尼吉康 | 当前型号 | 当前型号 |
PLV2A180MDL1 尼吉康 | 完全替代 | PLV2A180MDL1TD和PLV2A180MDL1的区别 |
