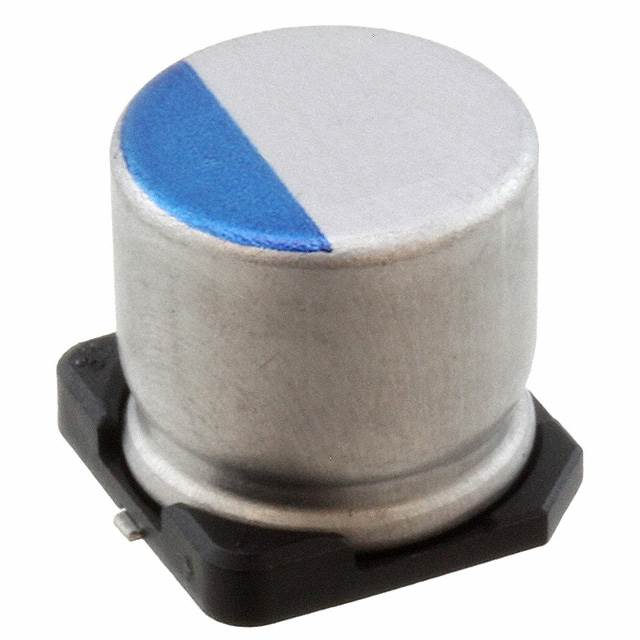

CV 系列 Ø 10 x 12.7 mm 50 V 100 uF 表面贴装 有机导电聚合物 电容
固态电解器
欧时:
Capacitor Organic 100uF 50V SMT
立创商城:
100uF ±20% 50V
艾睿:
If you require a component that can control the power coming into your integrated circuit, then the PCV1H101MCL2GS polymer capacitor from Nichicon is for you. It can withstand a voltage of 50 VDC. It has 2 terminals. This product is 12.7 mm tall with a diameter of 10 mm. It has a tolerance of 20%. This conductive polymer aluminum solid capacitor has an operating temperature range of -55 °C to 105 °C. Its leakage current is 1000@2Min μA.
Allied Electronics:
Capacitor; Aluminum Organic; Cap 100 uF; Tol 20%; Vol-Rtg 50 VDC; SMT; 10x12.7 mm
安富利:
Cap Aluminum 100uF 50V 20% 10 X 12.7mm Cylindrical 0.027 Ohm 3600mA 3000 hr 105°C T/R
Chip1Stop:
Cap Aluminum 100uF 50V 20% 10 X 12.7mm 0.027 Ohm 3600mA 3000h 105 C T/R
Verical:
Cap Aluminum Polymer 100uF 50VDC 20% 10 X 12.7mm SMD 0.027 Ohm 3600mA 3000h 105C Automotive T/R
电容 100 µF
等效串联电阻ESR 27 mΩ
容差 ±20 %
纹波电流 3600 mA
纹波电流低频 3.6A @100kHz
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压 50 VDC
安装方式 Surface Mount
封装 SMD
高度 12.7 mm
封装 SMD
工作温度 -55℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
寿命(小时) 3000h @105℃
制造应用 -
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
ECCN代码 EAR99
