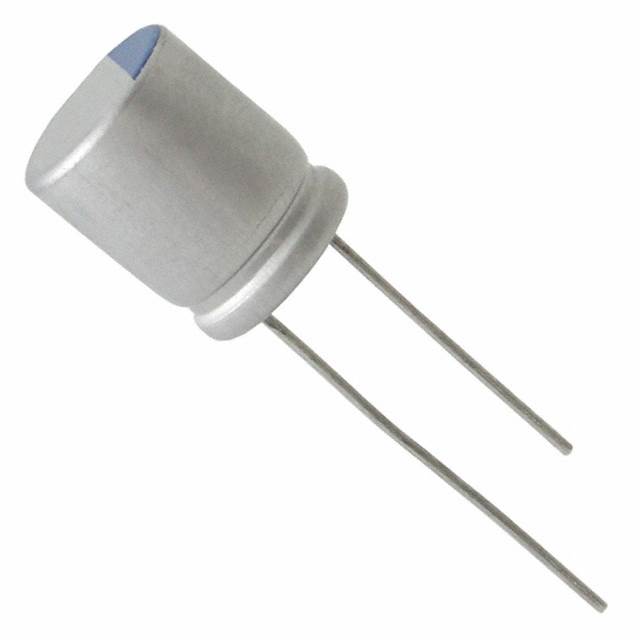

PLV1K220MDL1

LV 系列 80 V 22 uF Ø10x13mm LS=5mm 径向 有机导电聚合物 电容

22 µF 80 V 铝聚合物器 径向，Can 35 毫欧 105°C 时为 3000 小时

立创商城:
22uF ±20%

艾睿:
Nichicon has the component you need to support changes in input power with their PLV1K220MDL1 conductive polymer aluminum solid capacitor. Users like its long lead wire form. It can withstand a voltage of 80 VDC. This part has a lead diameter of 0.6 mm. It has 2 terminals. This conductive polymer aluminum solid capacitor has an operating temperature range of -55 °C to 105 °C. It has a tolerance of 20%. This product&s;s terminal pitch is 5 mm. The PLV1K220MDL1 conductive polymer aluminum solid capacitor has a radial termination style. This product is 13 mm tall with a diameter of 10 mm. Its leakage current is 352@2Min μA.
