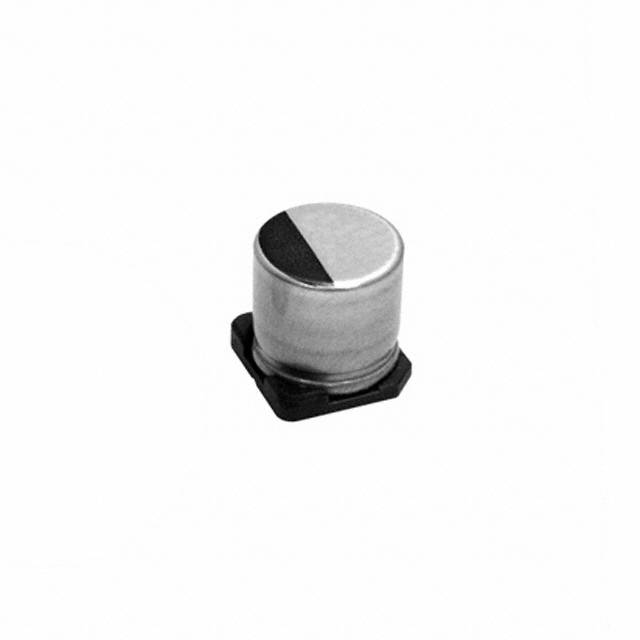

Cap Aluminum Polymer 22uF 20VDC 20% 6.3 X 6mm SMD 0.05Ω 1700mA 2000H 105℃ Automotive T/R
If you require a component that can control the power coming into your integrated circuit, then the polymer capacitor from is for you. It can withstand a voltage of 20 VDC. It has 2 terminals. This conductive polymer aluminum solid capacitor has an operating temperature range of -55 °C to 105 °C. This product is 6 mm tall with a diameter of 6.3 mm. Its leakage current is 88@2Min μA. It has a tolerance of 20%.
额定电压DC 20.0 V
电容 22 µF
等效串联电阻ESR 50 mΩ
容差 ±20 %
纹波电流 1.7 A
纹波电流低频 1.7A @100kHz
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压 20 V
安装方式 Surface Mount
引脚数 2
封装 SMD
长度 6 mm
高度 6 mm
直径 6.30 mm
封装 SMD
工作温度 -55℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
寿命(小时) 2000h @105℃
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
PCF1D220MCL1GS Nichicon 尼吉康 | 当前型号 | 当前型号 |
PCF1D220MCL4GB 尼吉康 | 类似代替 | PCF1D220MCL1GS和PCF1D220MCL4GB的区别 |
APXA200ARA220MF60S 贵弥功 | 功能相似 | PCF1D220MCL1GS和APXA200ARA220MF60S的区别 |
