TEXAS INSTRUMENTS PCM5100PW 数模转换器, 24 bit, 384 kSPS, 串行, 3V 至 3.6V, TSSOP, 20 引脚
The is a monolithic CMOS stereo Digital-to-analog Converter with additional support circuitry. The PCM510x uses the latest generation of s advanced segment-DAC architecture to achieve excellent dynamic performance and improved tolerance to clock jitter. The PCM510x provides 2.1VRMS ground centered outputs, allowing designers to eliminate DC blocking capacitors on the output, as well as external muting circuits traditionally associated with single supply line drivers. The integrated line driver surpasses all other charge-pump based line drivers by supporting loads down to 1kR. The integrated PLL on the device removes the requirement for a system clock, allowing a 3-wire I²S connection and reducing system EMI. Intelligent clock error and PowerSense under voltage protection utilizes a two level mute system for pop-free performance. Upon clock error or system power failure, the device digitally attenuates the data and then mutes the analog circuit.
输出接口数 2
供电电流 10.0 mA
通道数 2
针脚数 20
位数 24
耗散功率 0.185 W
采样率 384 ksps
功耗 59.4 mW
工作温度Max 85 ℃
工作温度Min -25 ℃
耗散功率Max 185 mW
数模转换数DAC 2
电源电压 3V ~ 3.6V
安装方式 Surface Mount

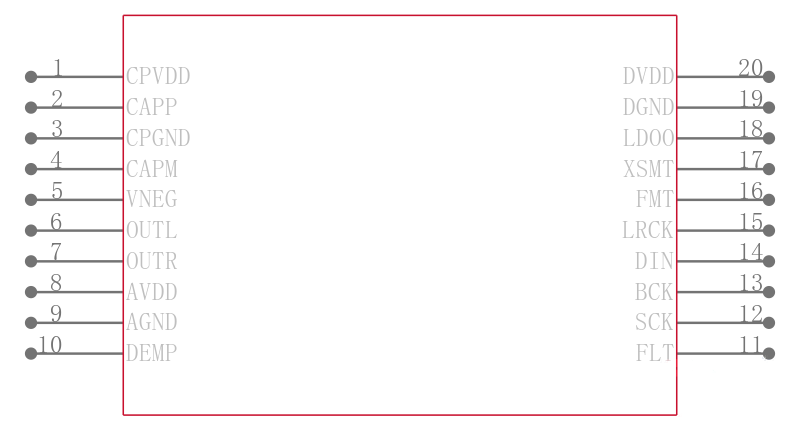

引脚数 20

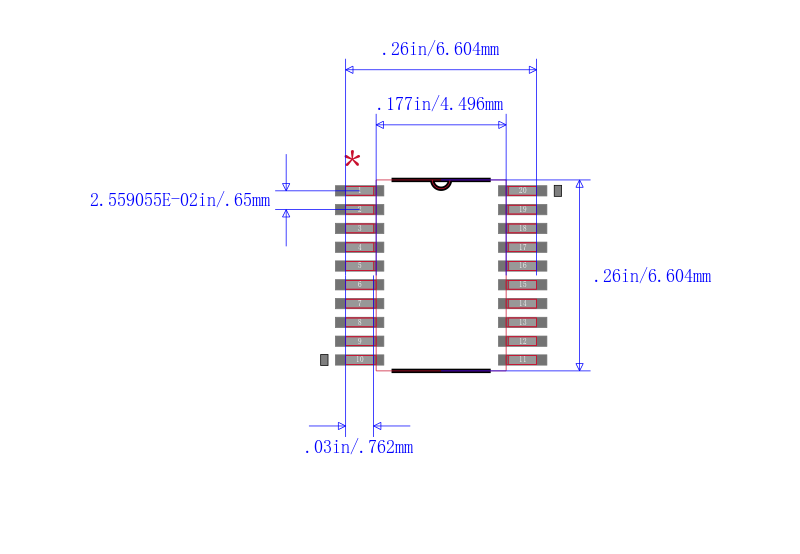

封装 TSSOP-20
封装 TSSOP-20
工作温度 -25℃ ~ 85℃
产品生命周期 Not Recommended for New Designs
包装方式 Bulk
制造应用 传感与仪器, 视频和目视, 成像, 消费电子产品, 音频
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
PCM5100PW TI 德州仪器 | 当前型号 | 当前型号 |
PCM5100PWR 德州仪器 | 类似代替 | PCM5100PW和PCM5100PWR的区别 |
