PCS0J101MCL1GS

CS 系列### 固体贴片 105°C电容容差 | 20 % ---|--- 工作温度 | -40 至 +105°C 耗散因子 | 小于或等于 0.06（120Hz，20°C） 冲击电压 | 额定工作电压 x 1.25（15 至 35°C） 预期寿命 @ 105°C | 1000 小时

CS 系列

105°C 时可保证 5000 小时

表面安装型

容差：±20%

工作温度范围 -55 至 +105°C

得捷:
CAP ALUM POLY 100UF 20% 6.3V SMD

立创商城:
100uF ±20% 6.3V

欧时:
### CS 系列### 固体贴片 105°C电容容差 | 20 % ---|--- 工作温度 | -40 至 +105°C 耗散因子 | 小于或等于 0.06（120Hz，20°C） 冲击电压 | 额定工作电压 x 1.25（15 至 35°C） 预期寿命 @ 105°C | 1000 小时

贸泽:
Aluminum Organic Polymer Capacitors 6.3 volts 100uF 105c 5x6

艾睿:
Add Nichicon&s;s PCS0J101MCL1GS conductive polymer aluminum solid capacitors within your electronic circuit in order to keep sensitive components safe from the damaging effects of voltage spikes. It can withstand a voltage of 6.3 VDC. It has 2 terminals. This conductive polymer aluminum solid capacitor has a minimum operating temperature of -55 °C and a maximum of 105 °C. Its leakage current is 126@2Min μA. This product is 6Max mm tall with a diameter of 5 mm. It has a tolerance of 20%.

Allied Electronics:

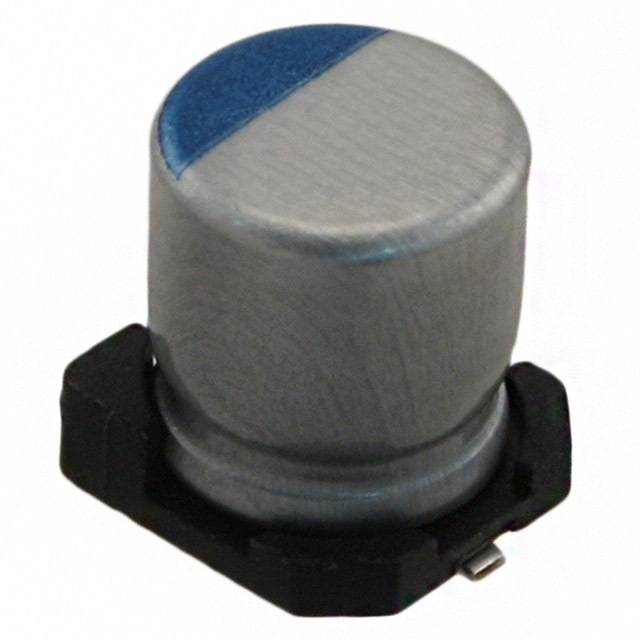

100uF 6.3V dc Polymer ALUM ElectrolyticCapacitor, CS Series 5000h 5Dia.x6mm

Verical:
Cap Aluminum Polymer 100uF 6.3VDC 20% 5 X 6mm SMD 0.025 Ohm 2400mA 5000h 105C Automotive T/R
