PHE426HB6470JR06

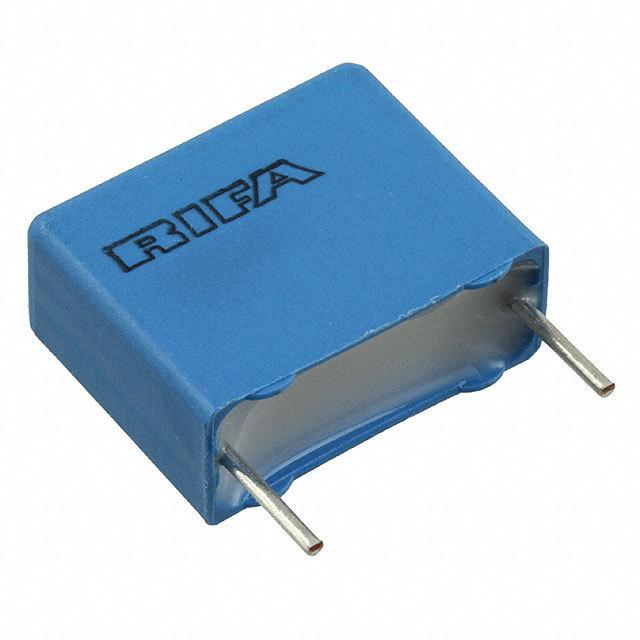

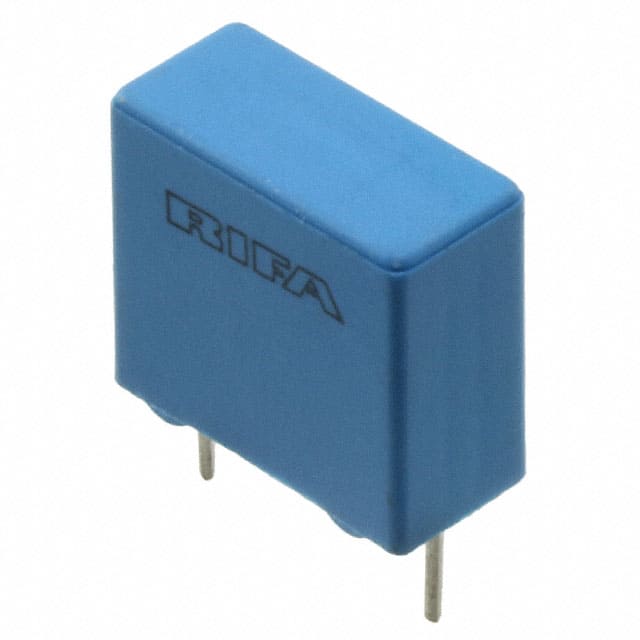

KEMET  PHE426HB6470JR06  膜电容, PHE426系列, 0.47 µF, ± 5%, PP聚丙烯, 250 V

PHE426 系列

SMPS、电视、监控器、镇流器和其他高频应用中的脉冲操作

工作温度 °C | -55 → +105

---|---

绝缘电阻 MΩ | 100000（在端子和外壳之间）

耗散因数 1kHz 时的 % | C<1μF 时，0.05%，C≥1μF 时0.10%

温度系数 ppm/° C | -200 +50, -100

欧时:
### PHE426 系列SMPS、电视、监控器、镇流器和其他高频应用中的脉冲操作 工作温度 °C | -55 → +105 ---|--- 绝缘电阻 MΩ | 100000（在端子和外壳之间） 耗散因数 1kHz 时的 % | C 温度系数 ppm/° C | -200 +50, -100 ### 径向 105°C封装于符合 UL94V-0 要求的自熄灭材料中

得捷:
CAP FILM 0.47UF 5% 250VDC RADIAL

立创商城:
470nF ±5% 250V

艾睿:
This pulse PHE426HB6470JR06 film capacitor from Kemet is ideal for voltage smoothing, and would make any filter or audio based design better for the smoothest signal. It can withstand a voltage of 250 VDC|160VAC. This part has a maximum operating temperature of 105 °C. The PHE426HB6470JR06 part has a radial termination style. Its capacitance value is 0.47uF. This part has a lead diameter of 0.8 mm and a pitch of 15 mm. It has a tolerance of 5%. This product is 18Max mm long, 14.5Max mm tall and 7.5Max mm deep.

Allied Electronics:
PHE426 470nF Polypropylene Film Capacitor 160 V ac, 250 V dc +/-5%

安富利:
Cap Film 0.47uF 250V PP 5% 18 X 7.5 X 14.5mm Radial 15mm 105°C Bulk

Chip1Stop:
Cap Film 0.47uF 250V PP 5% 18 X 7.5 X 14.5mm Radial 15mm 105 C Bulk

Verical:
Cap Film 0.47uF 250V PP 5% 18 X 7.5 X 14.5mm Radial 15mm 105C Bulk

Newark:
# KEMET  PHE426HB6470JR06  Film Capacitor, PHE426 Series, 0.47 F, 5%, PP Polypropylene, 250 V

Win Source:
CAP FILM 0.47UF 5% 250VDC RADIAL / 0.47 µF Film Capacitor 160V 250V Polypropylene PP, Metallized Radial
