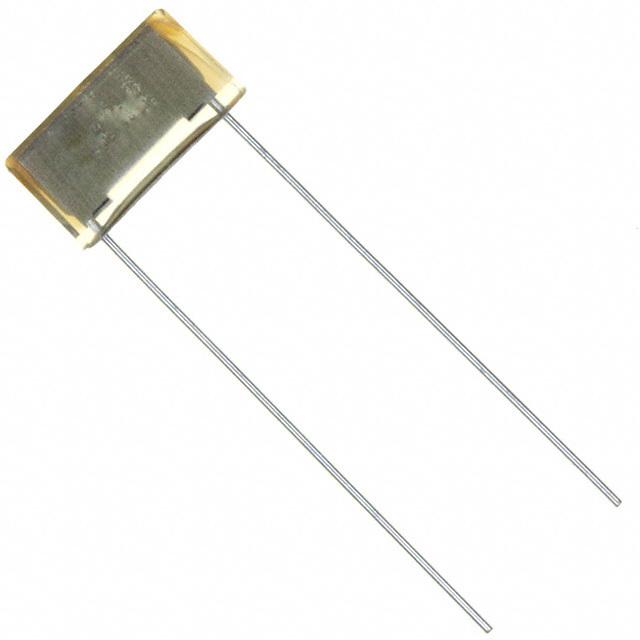

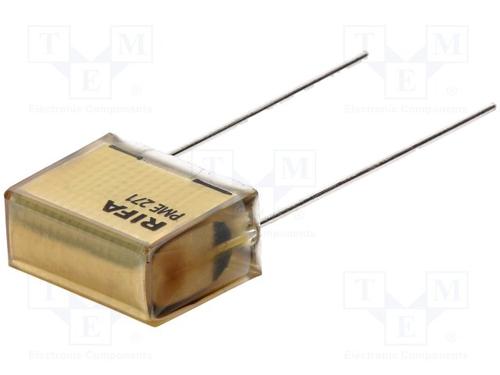

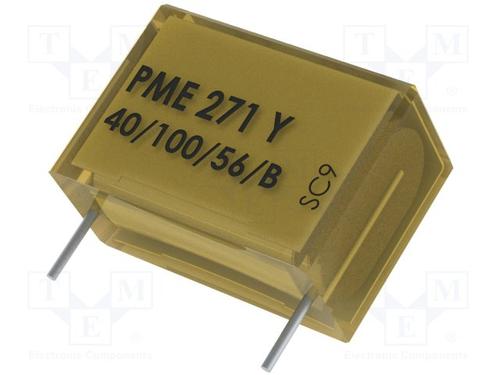

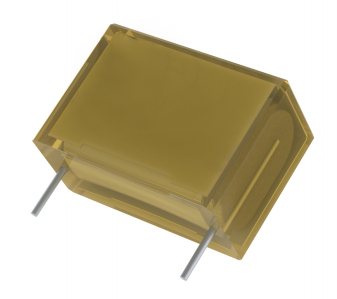

PME271YA4470MR30

KEMET  PME271YA4470MR30  膜电容, PME271Y系列, 4700 pF, ± 20%, Y2, 径向引线, 115 °C

The PME271Y series capacitors from Kemet are radial leaded, class Y2 metalized impregnated paper film capacitors for AC Line EMI suppression and RC networks. These capacitors are made of multilayer metalized paper encapsulated and impregnated in self extinguishing material meeting the requirements of UL94 V-0 standard. The impregnated paper ensures excellent stability and reliability properties, particularly in applications with continuous operation. Typical applications include worldwide use as electromagnetic interference suppressor in all Y2 applications, line to earth.

.

Capacitance values ranges from 0.001µF to 0.1µF

.

Voltage rating is 250VAC at 50/60Hz

.

Lead spacing of 10.2mm to 25.4mm

.

Capacitance tolerance is ±20%

.

Operating temperature range from -40˚C to 100˚C

.

ENEC, UL, CSA, CQC approved

.

100% screening factory test at 3000VDC

.

Highest possible safety regarding active and passive flammability

.

Excellent self healing properties

.

High dV/dt capability
