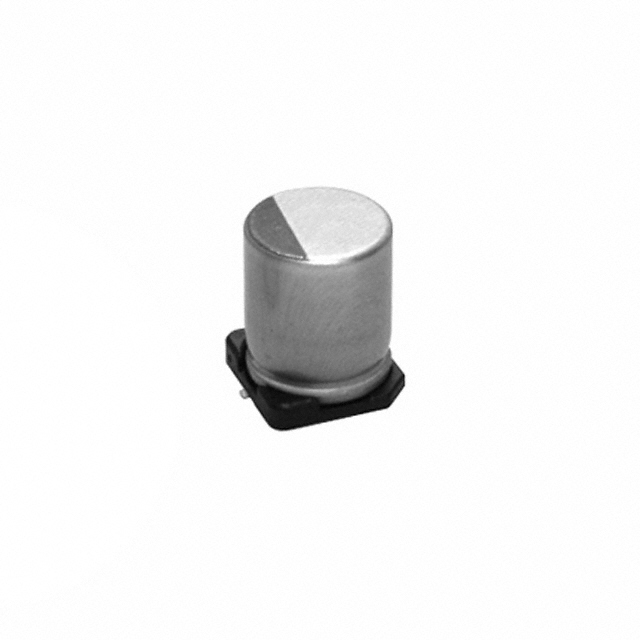

Cap Aluminum Polymer 1500uF 10VDC 20% 10 X 12.7mm SMD 0.013Ω 4900mA 2000H 105℃ Automotive T/R
Using "s conductive polymer aluminum solid capacitor, easily take care of varying levels of voltage entering your circuit. It can withstand a voltage of 10 VDC. It has 2 terminals. This conductive polymer aluminum solid capacitor has an operating temperature range of -55 °C to 105 °C. Its leakage current is 3000@2Min μA. It has a tolerance of 20%. This product is 12.7 mm tall with a diameter of 10 mm.
额定电压DC 10.0 V
电容 1500 µF
等效串联电阻ESR 13 mΩ
容差 ±20 %
纹波电流 4900 mA
纹波电流低频 4.9A @100kHz
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压 10 V
安装方式 Surface Mount
封装 SMD
高度 12.7 mm
直径 10.0 mm
封装 SMD
工作温度 -55℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
寿命(小时) 2000 h
制造应用 -, 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
PCG1A152MCL1GS Nichicon 尼吉康 | 当前型号 | 当前型号 |
PCF0E152MCL9GS 尼吉康 | 功能相似 | PCG1A152MCL1GS和PCF0E152MCL9GS的区别 |
