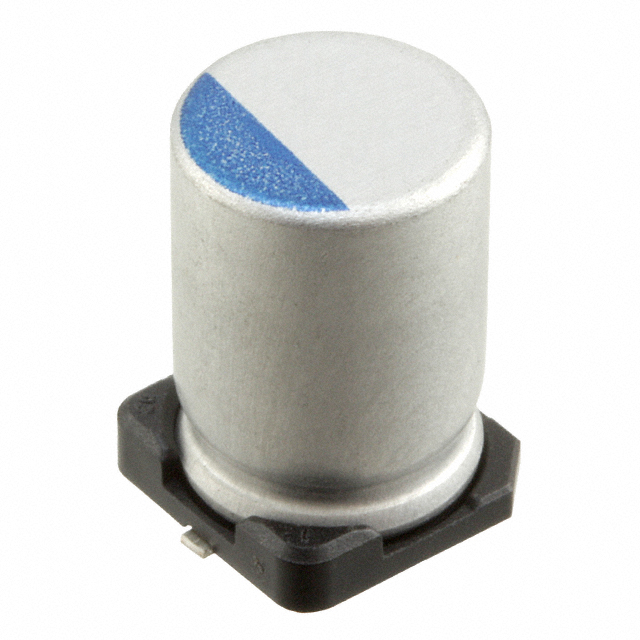

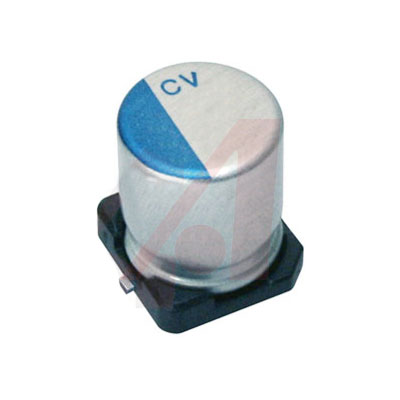

Cap Aluminum Polymer 56uF 50VDC 20% 8 X 12mm SMD 0.028Ω 3400mA 3000H 105℃ Automotive T/R
**Features:
**
* High voltage Up to 63 V, Low ESR, High Ripple Current**
**
* Load Life of 3000 Hours at 105°C**
**
* SMD Type : Lead Free Reflow Soldering Condition at 260°C Peak Correspondence**
**
* Compliant to the RoHS Directive 2002/95/EC
立创商城:
56uF ±20% 50V
得捷:
CAP ALUM POLY 56UF 20% 50V SMD
艾睿:
By adding one of Nichicon&s;s PCV1H560MCL2GS conductive polymer aluminum solid capacitors to your circuit, you can ensure safe operation of the ICs and other components from unexpected loads. It can withstand a voltage of 50 VDC. It has 2 terminals. This conductive polymer aluminum solid capacitor has a minimum operating temperature of -55 °C and a maximum of 105 °C. It has a tolerance of 20%. Its leakage current is 560@2Min μA. This product is 12 mm tall with a diameter of 8 mm.
Allied Electronics:
Capacitor; Aluminum Organic; Cap 56 uF; Tol 20%; Vol-Rtg 50 VDC; SMT; 8x12 mm
Verical:
Cap Aluminum Polymer 56uF 50VDC 20% 8 X 12mm SMD 0.028 Ohm 3400mA 3000h 105C Automotive T/R
