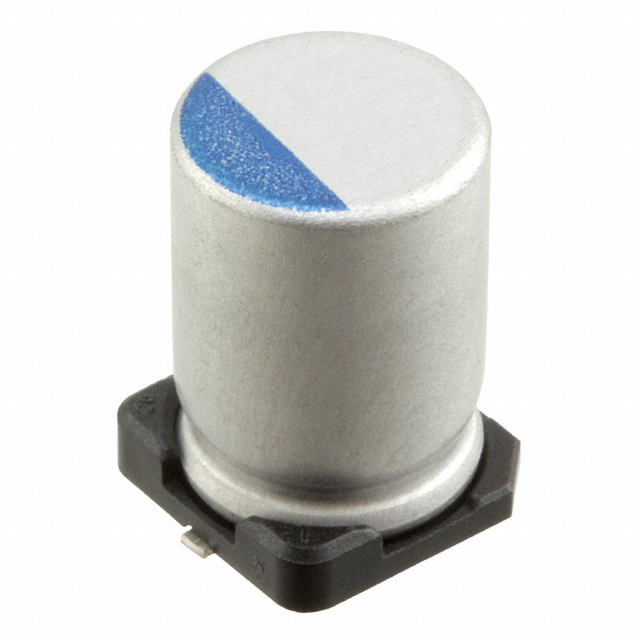

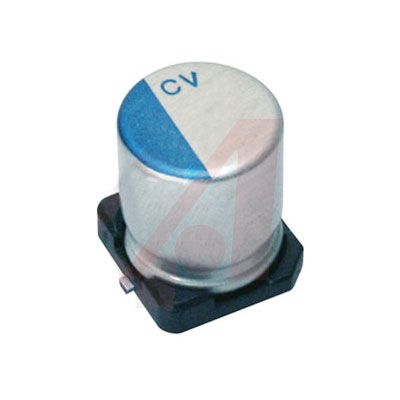

PCV1C271MCL1GS

Cap Aluminum Polymer 270uF 16VDC 20% 8 X 12mm SMD 0.026Ω 2300mA 3000H 105℃ Automotive T/R

**Features:

**

* High voltage Up to 63 V, Low ESR, High Ripple Current**

**

* Load Life of 3000 Hours at 105°C**

**

* SMD Type : Lead Free Reflow Soldering Condition at 260°C Peak Correspondence**

**

* Compliant to the RoHS Directive 2002/95/EC

立创商城:
270uF ±20% 16V

得捷:
CAP ALUM POLY 270UF 20% 16V SMD

艾睿:
By adding one of Nichicon&s;s PCV1C271MCL1GS conductive polymer aluminum solid capacitors to your circuit, you can ensure safe operation of the ICs and other components from unexpected loads. It can withstand a voltage of 16 VDC. It has 2 terminals. It has a tolerance of 20%. Its leakage current is 864@2Min μA. This product is 12 mm tall with a diameter of 8 mm. This conductive polymer aluminum solid capacitor has an operating temperature range of -55 °C to 105 °C.

Allied Electronics:
Capacitor; Aluminum Organic; Cap 270 uF; Tol 20%; Vol-Rtg 16 VDC; SMT; 8x12 mm

安富利:
Cap Aluminum 270uF 16V 20% 8 X 12mm Cylindrical 2300mA 3000 hr 105°C T/R

Verical:
Cap Aluminum Polymer 270uF 16VDC 20% 8 X 12mm SMD 0.026 Ohm 2300mA 3000h 105C Automotive T/R
