PCX1V560MCL1GS

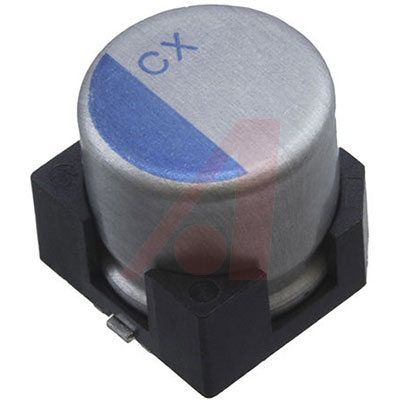

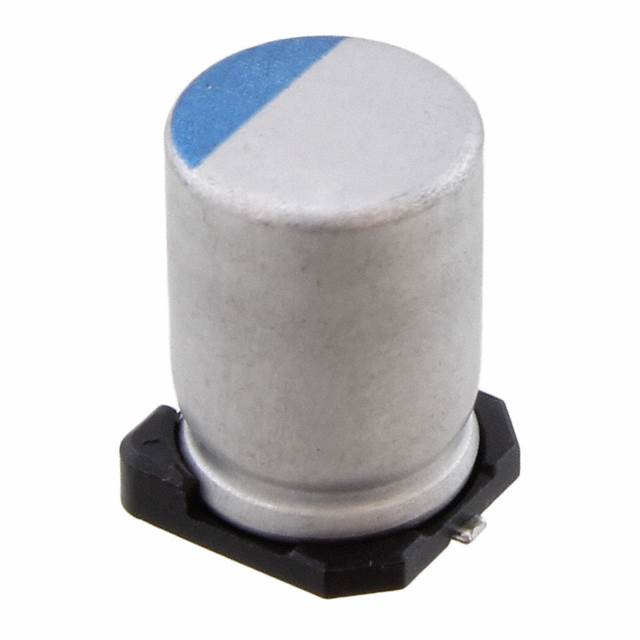

NICHICON  PCX1V560MCL1GS  铝电解电容, 56uF, 35V, SMD

**Features:

**

* Capacitance Range: 5.6 to 390 μF

* Voltage Range: 16 to 50 VDC

* Tolerance: 20% at 120 Hz, 20°C

* Temperature Range: –55 to +125°C

* High Reliability, High Voltage to 50 VDC

* Low ESR, High Ripple Current

* Long Life of 1500 to 3000 Hours at 125°C

* SMD Type: Lead Free Reflow Soldering Condition at 260°C Peak Complete Correspondence

立创商城:
56uF ±20% 35V

贸泽:
铝有机聚合物电容器 35V 56uF 20%

e络盟:
铝电解电容, 56uF, 35V, SMD

艾睿:
Cap Aluminum Polymer 56uF 35VDC 20% 8 X 12mm SMD 0.033 Ohm 2000mA 3000h 125°C Automotive T/R

Allied Electronics:
56uF 35 V Polymer Aluminium Electrolytic Capacitor, CX Series 3000h 8 x 12mm

安富利:
Cap Aluminum 56uF 35V 20% 8 X 12mm SMD 0.033 Ohm 2000mA 3000 hr 125°C T/R

Verical:
Cap Aluminum Polymer 56uF 35VDC 20% 8 X 12mm SMD 0.033 Ohm 2000mA 3000h 125C Automotive T/R

Newark:
# NICHICON  PCX1V560MCL1GS  Electrolytic Capacitor, SP-Cap, 56 µF, 35 V, CX Series, Radial Can - SMD, -55 °C
