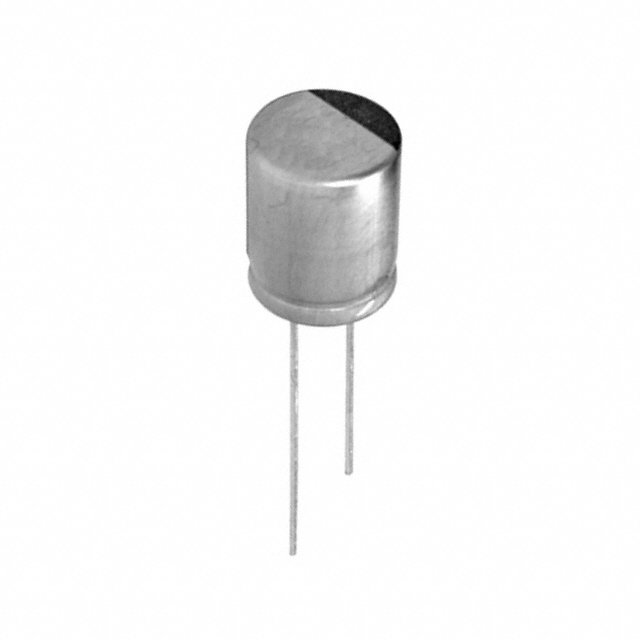

PLG1A561MCO1

Cap Aluminum Polymer 560uF 10VDC 20% 8 X 9mm Radial 3.5mm 0.011Ω 5100mA 2000H 105℃ Automotive Bulk

560 µF 10 V 铝聚合物器 径向，Can 11 毫欧 105°C 时为 2000 小时

立创商城:
560uF ±20% 10V

艾睿:
By adding one of Nichicon&s;s PLG1A561MCO1 conductive polymer aluminum solid capacitors to your circuit, you can ensure safe operation of the ICs and other components from unexpected loads. Users like its long lead wire form. It can withstand a voltage of 10 VDC. This part has a lead diameter of 0.6 mm. The PLG1A561MCO1 conductive polymer aluminum solid capacitor has a radial termination style. This conductive polymer aluminum solid capacitor has a minimum operating temperature of -55 °C and a maximum of 105 °C. This product is 9 mm tall with a diameter of 8 mm. Its leakage current is 1120@2Min μA. This product&s;s terminal pitch is 3.5 mm. It has a tolerance of 20%.

安富利:
Cap Aluminum 560uF 10V 20% 8 X 9mm Radial 3.5mm 0.011 Ohm 5100mA 2000 hr 105°C Bulk

Newark:
# NICHICON  PLG1A561MCO1  Electrolytic Capacitor, Snap-in, 560 µF, 10 V, LG Series, ± 20%, Quick Connect, Snap-In, 8 mm
