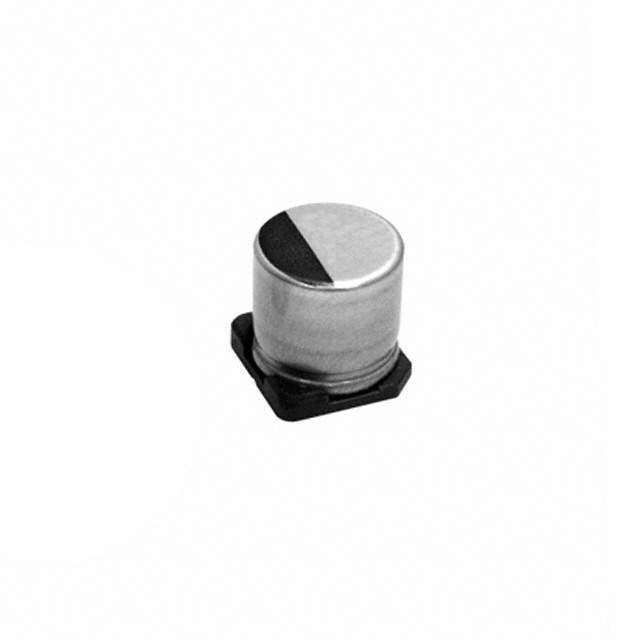

CF 系列 Ø 10 x 8 mm 6.3 V 470 uF 有机导电聚合物 电容
Add "s conductive polymer aluminum solid capacitors within your electronic circuit in order to keep sensitive components safe from the damaging effects of voltage spikes. It can withstand a voltage of 6.3 VDC. It has 2 terminals. It has a tolerance of 20%. Its leakage current is 592@2Min μA. This conductive polymer aluminum solid capacitor has a minimum operating temperature of -55 °C and a maximum of 105 °C. This product is 8 mm tall with a diameter of 10 mm.
额定电压DC 6.30 V
电容 470 µF
等效串联电阻ESR 18 mΩ
容差 ±20 %
纹波电流 4300 mA
纹波电流低频 4.3A @100kHz
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压 6.3 V
安装方式 Surface Mount
封装 SMD
高度 8 mm
直径 10.0 mm
封装 SMD
工作温度 -55℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
寿命（小时） 2000h @105℃
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
PCF0J471MCL6GS Nichicon 尼吉康 | 当前型号 | 当前型号 |
6SVPS470M 松下 | 功能相似 | PCF0J471MCL6GS和6SVPS470M的区别 |
PCF0G471MCL1GS 尼吉康 | 功能相似 | PCF0J471MCL6GS和PCF0G471MCL1GS的区别 |
