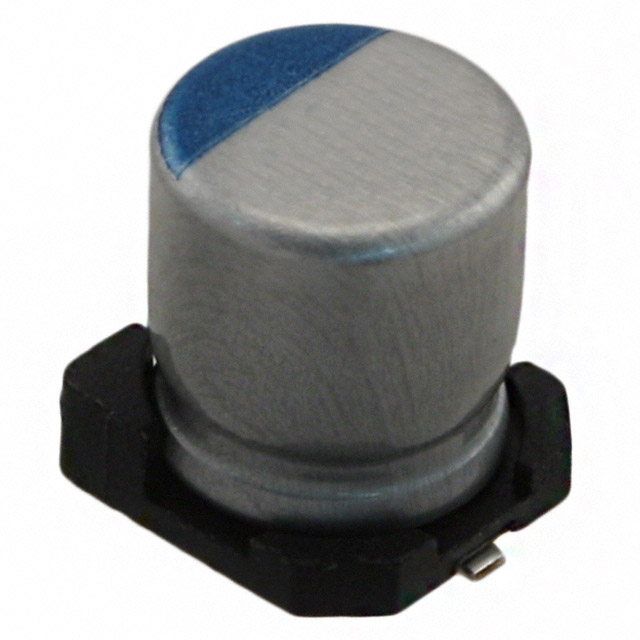

PCS1C390MCL1GS

CS 系列### 固体贴片 105°C电容容差 | 20 % ---|--- 工作温度 | -40 至 +105°C 耗散因子 | 小于或等于 0.06（120Hz，20°C） 冲击电压 | 额定工作电压 x 1.25（15 至 35°C） 预期寿命 @ 105°C | 1000 小时

CS 系列

105°C 时可保证 5000 小时

表面安装型

容差：±20%

工作温度范围 -55 至 +105°C

欧时:
Nichicon 铝聚合物电容器 CS 系列 16V dc 39μF 表面安装器件 聚合体 PCS1C390MCL1GS, ±20%容差

立创商城:
39uF ±20% 16V

得捷:
CAP ALUM POLY 39UF 20% 16V SMD

艾睿:
Nichicon has the component you need to support changes in input power with their PCS1C390MCL1GS conductive polymer aluminum solid capacitor. It can withstand a voltage of 16 VDC. It has 2 terminals. It has a tolerance of 20%. Its leakage current is 125@2Min μA. This product is 6Max mm tall with a diameter of 5 mm. This conductive polymer aluminum solid capacitor has an operating temperature range of -55 °C to 105 °C.

Allied Electronics:
39uF 16V dc Polymer Aluminium Electrolytic Capacitor, CS Series 5000h 5Dia.x6mm

安富利:
Cap Aluminum 39uF 16V 20% 5 X 6mm SMD 0.035 Ohm 2000mA 5000 hr 105°C T/R

Chip1Stop:
Cap Aluminum 39uF 16V 20% 5 X 6mm SMD 0.035 Ohm 2000mA 5000h 105 C T/R

Verical:
Cap Aluminum Polymer 39uF 16VDC 20% 5 X 6mm SMD 0.035 Ohm 2000mA 5000h 105C Automotive T/R
