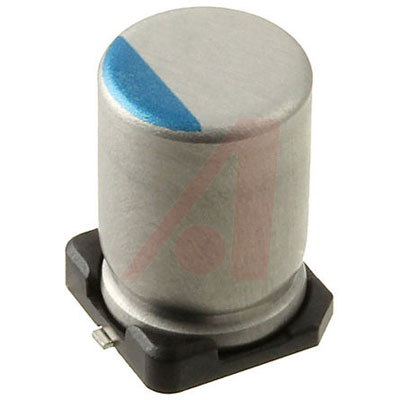

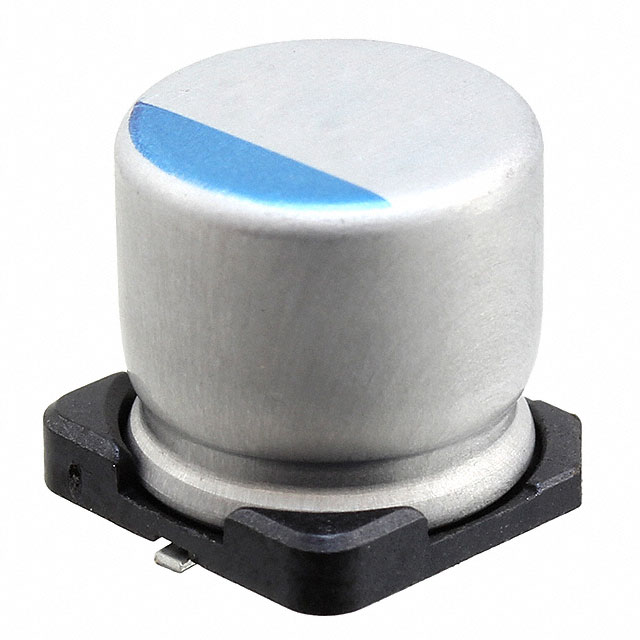

PCR1D561MCL1GS

Cap Aluminum Polymer 560uF 20VDC 20% 10 X 10mm SMD 0.04Ω 3100mA 4000H 125℃ Automotive T/R

**Features:

**

* Capacitance Range: 5.6 to 2700 μF

* Voltage Range: 6.3 to 100 VDC

* Tolerance: 20% at 120 Hz, 20°C

* Temperature Range: –55 to +125°C

* High Reliability, High Voltage to 100 V

* Low ESR, High Ripple Current

* Long Life of 4000 Hours at 125°C

* SMD Type : Lead Free Reflow Soldering Condition at 260°C Peak Complete Correspondence

* Added ESR Specification After the Test at –40°C

立创商城:
560uF ±20% 20V

艾睿:
Cap Aluminum Polymer 560uF 20VDC 20% 10 X 10mm SMD 0.04 Ohm 3100mA 4000h 125°C Automotive T/R

Allied Electronics:
560uF 20V Polymer ALUM Electrolytic Capacitor, CR Series 4000h 10.3x10.3x9.9mm
