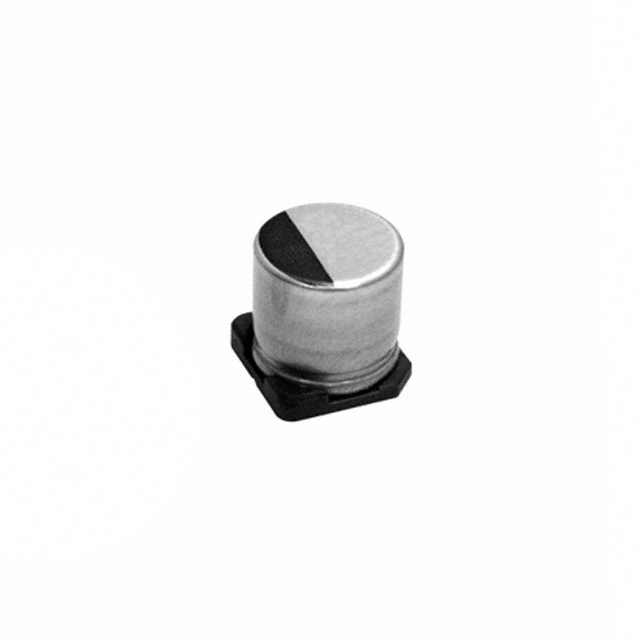

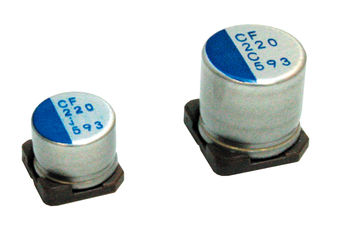

Cap Aluminum Polymer 39uF 16VDC 20% 6.3 X 6mm SMD 0.031Ω 2400mA 2000H 105℃ Automotive T/R
Look no further than the conductive polymer aluminum solid capacitor from , ideal for use in supporting changes in the load of an integrated circuit. It can withstand a voltage of 16 VDC. It has 2 terminals. It has a tolerance of 20%. This conductive polymer aluminum solid capacitor has an operating temperature range of -55 °C to 105 °C. This product is 6 mm tall with a diameter of 6.3 mm. Its leakage current is 125@2Min μA.
额定电压DC 16.0 V
电容 39 µF
等效串联电阻ESR 31 mΩ
容差 ±20 %
纹波电流 2400 mA
纹波电流低频 2.4A @100kHz
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压 16 V
安装方式 Surface Mount
封装 SMD
长度 7.3 mm
宽度 6.6 mm
高度 6 mm
直径 6.00 mm
封装 SMD
工作温度 -55℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
寿命(小时) 2000h @105℃
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
PCF1C390MCL1GS Nichicon 尼吉康 | 当前型号 | 当前型号 |
PCS1C390MCL9GS 尼吉康 | 类似代替 | PCF1C390MCL1GS和PCS1C390MCL9GS的区别 |
16SVP39M 松下 | 功能相似 | PCF1C390MCL1GS和16SVP39M的区别 |
16SVPS39M 松下 | 功能相似 | PCF1C390MCL1GS和16SVPS39M的区别 |
