10nF ±20% 1000V 10.5mm
10000pF Film Capacitor 250V 1000V 1kV Paper, Metallized Radial
得捷:
CAP FILM 10000PF 20% 1KVDC RAD
立创商城:
10nF ±20% 250VAC
贸泽:
Film Capacitors 250volts 0.01uF 20% LS 15.2mm
艾睿:

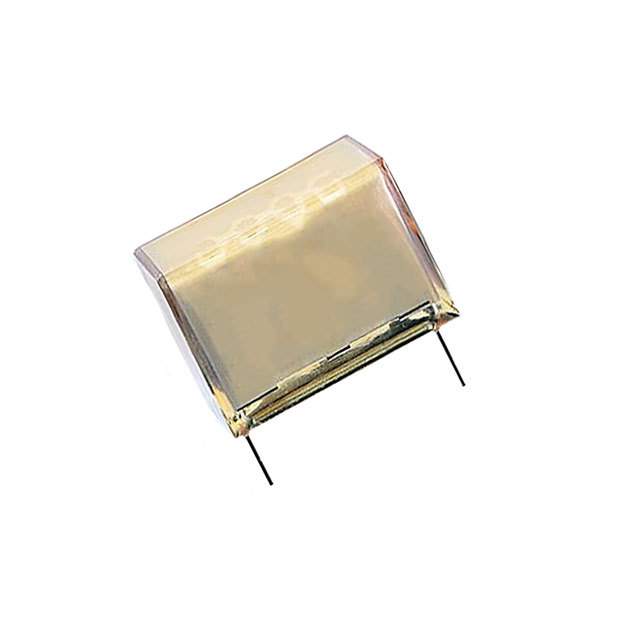

This emi suppression PME271Y510MR19T0 film capacitor from Kemet is ideal for voltage smoothing, and would make any filter or audio based design better for the smoothest signal. It can withstand a voltage of 1000 VDC|250VAC. This part has a maximum operating temperature of 100 °C. The PME271Y510MR19T0 part has a radial termination style. This part has a lead diameter of 0.8 mm and a pitch of 15.2 mm. This product is 18.5Max mm long, 10.5Max mm tall and 5.2Max mm deep. Its capacitance value is 0.01uF. It has a tolerance of 20%.
安富利:
Cap Paper 0.01uF 250VAC 20% 18.5 X 5.2 X 10.5mm Radial 15.2mm T/R
TME:
Capacitor: paper; Y2; 10nF; 250VAC; Pitch:15.2mm; ±20%; THT; 1kVDC
额定电压DC 1000 V
额定电压AC 300 V
电容 0.01 µF
容差 ±20 %
产品系列 PME271Y
工作温度Max 100 ℃
工作温度Min -40 ℃
安装方式 Through Hole
封装 Radial
引脚间距 15.2 mm
长度 18.5 mm
宽度 5.2 mm
高度 10.5 mm
脚长度 19.0 mm
封装 Radial
引脚间距 15.2 mm
工作温度 -40℃ ~ 100℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 EMI,RFI 抑制
RoHS标准 RoHS Compliant
含铅标准 Lead Free
