PCF1A100MCL1GB

PCF1A100MCL1GB图片1
PCF1A100MCL1GB图片2
PCF1A100MCL1GB图片3

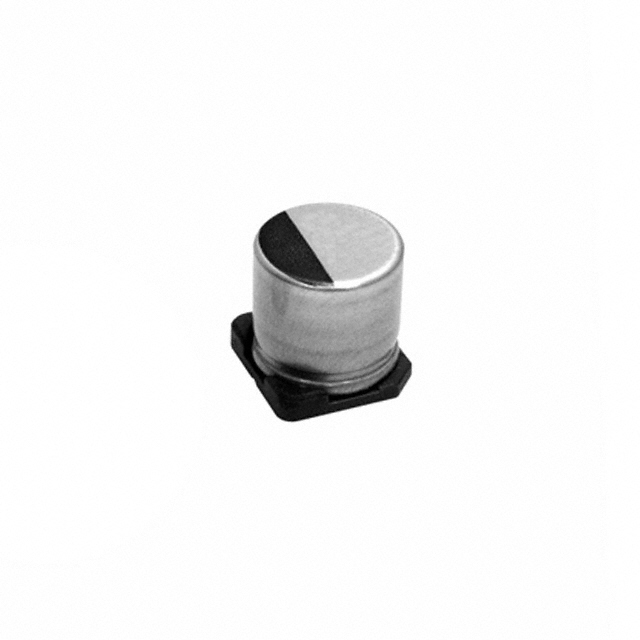

PCF1A100MCL1GB图片4
PCF1A100MCL1GB概述

Cap Aluminum Polymer 10uF 10VDC 20% 4 X 5.5mm SMD 0.22Ω 700mA 2000H 105℃ Automotive T/R

has the component you need to support changes in input power with their conductive polymer aluminum solid capacitor. It can withstand a voltage of 10 VDC. It has 2 terminals. This product is 5.5 mm tall with a diameter of 4 mm. This conductive polymer aluminum solid capacitor has a minimum operating temperature of -55 °C and a maximum of 105 °C. It has a tolerance of 20%. Its leakage current is 100@2Min μA.

PCF1A100MCL1GB中文资料参数规格
技术参数

额定电压DC 10.0 V

电容 10 µF

等效串联电阻ESR 220 mΩ

容差 ±20 %

纹波电流 700 mA

纹波电流低频 700 mA

工作温度Max 105 ℃

工作温度Min -55 ℃

封装参数

安装方式 Surface Mount

封装 SMD

外形尺寸

高度 5.5 mm

直径 4.00 mm

封装 SMD

物理参数

工作温度 -55℃ ~ 105℃

其他

产品生命周期 End of Life

包装方式 Tape & Reel TR

寿命(小时) 2000 h

制造应用 通用

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

PCF1A100MCL1GB引脚图与封装图
PCF1A100MCL1GB引脚图
PCF1A100MCL1GB封装图
PCF1A100MCL1GB封装焊盘图
在线购买PCF1A100MCL1GB
型号: PCF1A100MCL1GB
描述:Cap Aluminum Polymer 10uF 10VDC 20% 4 X 5.5mm SMD 0.22Ω 700mA 2000H 105℃ Automotive T/R
替代型号PCF1A100MCL1GB
型号/品牌 代替类型 替代型号对比

PCF1A100MCL1GB

Nichicon 尼吉康

当前型号

当前型号

RFS1A100MCN1GB

尼吉康

类似代替

PCF1A100MCL1GB和RFS1A100MCN1GB的区别

10SVP10M

松下

功能相似

PCF1A100MCL1GB和10SVP10M的区别

10SVPS10M

松下

功能相似

PCF1A100MCL1GB和10SVPS10M的区别
