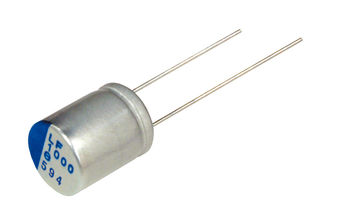

PLF1C101MDL4

Cap Aluminum Polymer 100uF 16VDC 20% 6.3 X 10.5mm Radial 2.5mm 0.024Ω 2900mA 2000H 105℃ Automotive Bulk

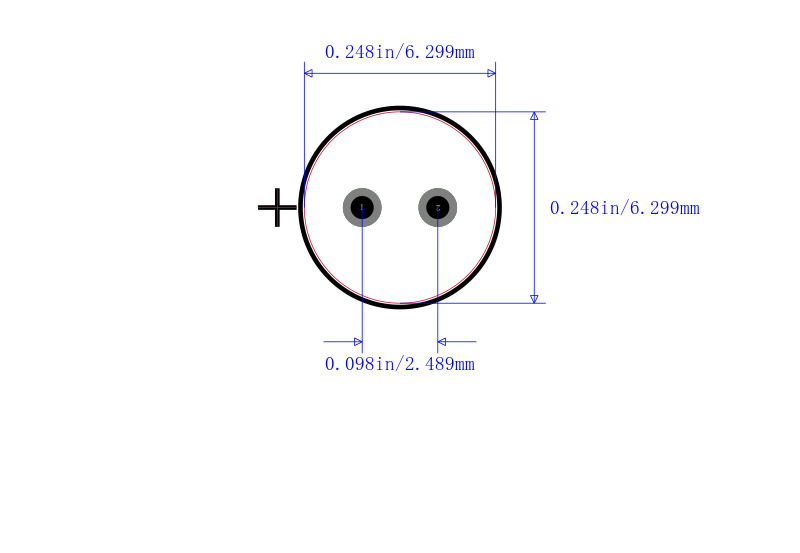

"s conductive polymer aluminum solid capacitor can easily support changes to the input load into an integrated circuit. Users like its long lead wire form. It can withstand a voltage of 16 VDC. This part has a lead diameter of 0.5 mm. It has 2 terminals. The PLF1C101MDL4 conductive polymer aluminum solid capacitor has a radial termination style. Its leakage current is 320@2Min μA. It has a tolerance of 20%. This product is 10.5 mm tall with a diameter of 6.3 mm. This product"s terminal pitch is 2.5 mm. This conductive polymer aluminum solid capacitor has a minimum operating temperature of -55 °C and a maximum of 105 °C.
