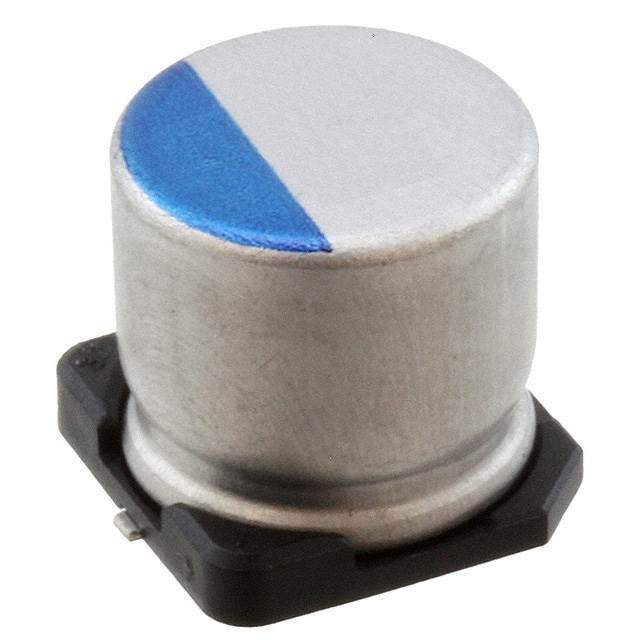

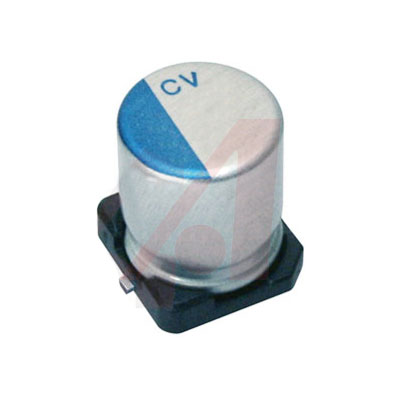

PCV1C221MCL1GS

Cap Aluminum Polymer 220uF 16VDC 20% 10 X 8mm SMD 0.031Ω 2000mA 3000H 105℃ Automotive T/R

**Features:

**

* High voltage Up to 63 V, Low ESR, High Ripple Current**

**

* Load Life of 3000 Hours at 105°C**

**

* SMD Type : Lead Free Reflow Soldering Condition at 260°C Peak Correspondence**

**

* Compliant to the RoHS Directive 2002/95/EC

立创商城:
220uF ±20% 16V

得捷:
CAP ALUM POLY 220UF 20% 16V SMD

艾睿:
Using Nichicon&s;s PCV1C221MCL1GS conductive polymer aluminum solid capacitor, easily take care of varying levels of voltage entering your circuit. It can withstand a voltage of 16 VDC. It has 2 terminals. This product is 8 mm tall with a diameter of 10 mm. Its leakage current is 704@2Min μA. It has a tolerance of 20%. This conductive polymer aluminum solid capacitor has a minimum operating temperature of -55 °C and a maximum of 105 °C.

Allied Electronics:

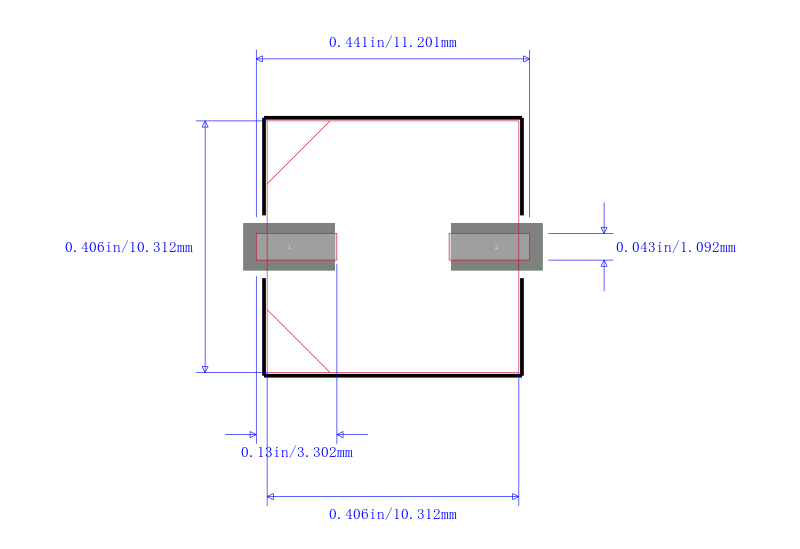

Capacitor; Aluminum Organic; Cap 220 uF; Tol 20%; Vol-Rtg 16 VDC; SMT; 10x8 mm

Verical:
Cap Aluminum Polymer 220uF 16VDC 20% 10 X 8mm SMD 0.031 Ohm 2000mA 3000h 105C Automotive T/R
