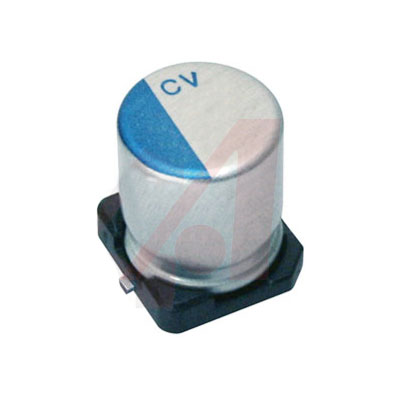

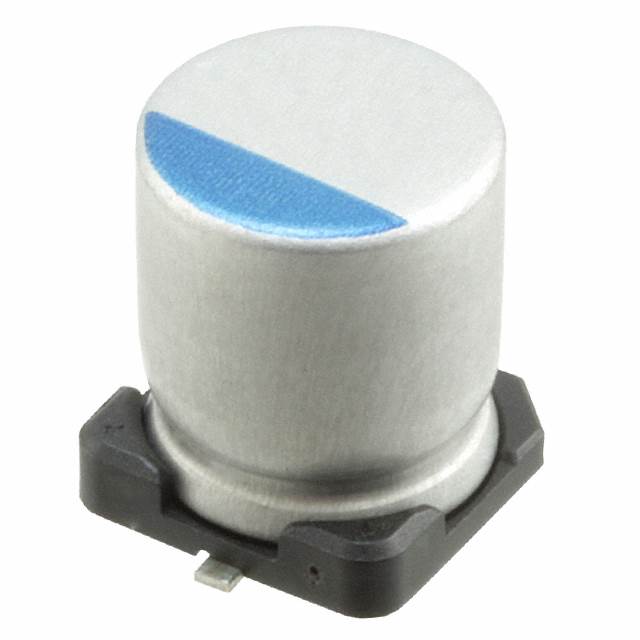

PCV1E121MCL6GS

Cap Aluminum Polymer 120uF 25VDC 20% 8 X 10mm SMD 0.029Ω 1900mA 3000H 105℃ Automotive T/R

**Features:

**

* High voltage Up to 63 V, Low ESR, High Ripple Current**

**

* Load Life of 3000 Hours at 105°C**

**

* SMD Type : Lead Free Reflow Soldering Condition at 260°C Peak Correspondence**

**

* Compliant to the RoHS Directive 2002/95/EC

立创商城:
120uF ±20% 25V

得捷:
CAP ALUM POLY 120UF 20% 25V SMD

艾睿:
Feel rest assured that sensitive electronic circuitry is protected from harm when you use Nichicon&s;s PCV1E121MCL6GS conductive polymer aluminum solid capacitors. It can withstand a voltage of 25 VDC. It has 2 terminals. This conductive polymer aluminum solid capacitor has an operating temperature range of -55 °C to 105 °C. This product is 10 mm tall with a diameter of 8 mm. Its leakage current is 600@2Min μA. It has a tolerance of 20%.

Allied Electronics:
Capacitor; Aluminum Organic; Cap 120 uF; Tol 20%; Vol-Rtg 25 VDC; SMT; 8x10 mm

安富利:
Cap Aluminum 120uF 25V 20% 8 X 10mm Cylindrical 0.029 Ohm 1900mA 3000 hr 105°C T/R

Chip1Stop:
Cap Aluminum 120uF 25V 20% 8 X 10mm SMD 0.029 Ohm 1900mA 3000h 105 C T/R

Verical:
Cap Aluminum Polymer 120uF 25VDC 20% 8 X 10mm SMD 0.029 Ohm 1900mA 3000h 105C Automotive T/R
