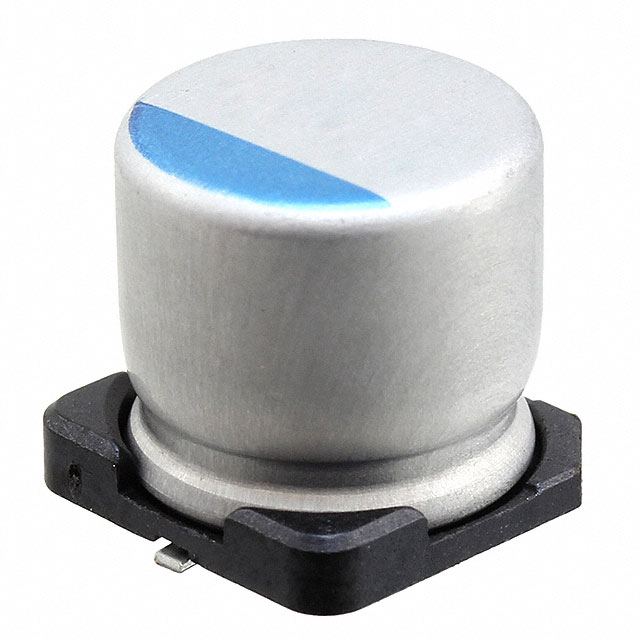

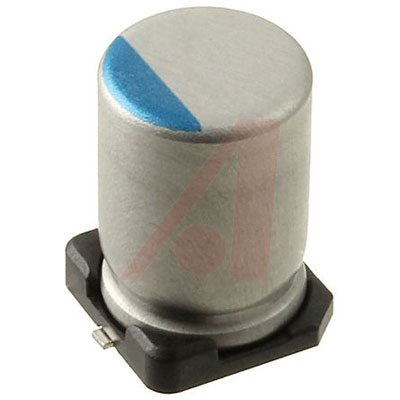

Cap Aluminum Polymer 47uF 80VDC 20% 10 X 10mm SMD 0.066Ω 1700mA 4000H 125℃ Automotive T/R
**Features:
**
* Capacitance Range: 5.6 to 2700 μF
* Voltage Range: 6.3 to 100 VDC
* Tolerance: 20% at 120 Hz, 20°C
* Temperature Range: –55 to +125°C
* High Reliability, High Voltage to 100 V
* Low ESR, High Ripple Current
* Long Life of 4000 Hours at 125°C
* SMD Type : Lead Free Reflow Soldering Condition at 260°C Peak Complete Correspondence
* Added ESR Specification After the Test at –40°C
欧时:
Capacitor SMD CAP 80 47uF 20%
立创商城:
47uF ±20% 80V
艾睿:
Look no further than the PCR1K470MCL1GS conductive polymer aluminum solid capacitor from Nichicon, ideal for use in supporting changes in the load of an integrated circuit. It can withstand a voltage of 80 VDC. It has 2 terminals. This conductive polymer aluminum solid capacitor has a minimum operating temperature of -55 °C and a maximum of 125 °C. This product is 10 mm tall with a diameter of 10 mm. It has a tolerance of 20%. Its leakage current is 112.8@2Min μA.
Allied Electronics:
47uF 80V Polymer ALUM Electrolytic Capacitor, CR Series 4000h 10.3x10.3x9.9mm
安富利:
Cap Aluminum 47uF 80V 20% 10 X 10mm Cylindrical 0.033 Ohm 1700mA 4000 hr 125°C T/R
Verical:
Cap Aluminum Polymer 47uF 80VDC 20% 10 X 10mm SMD 0.066 Ohm 1700mA 4000h 125C Automotive T/R
