P6SMB110A

瞬态电压抑制二极管 Transient Voltage Suppression Diodes

Description

The P6SMB series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.

Applications

TVS devices are ideal for the protection of I/O Interfaces, VCC bus and other vulnerable circuits used in Telecom, Computer, Industrial and Consumer electronic applications.

得捷:
TVS DIODE 94VWM 152VC DO214AA

艾睿:
Protect your critical electronic applications from sudden overvoltage conditions with this P6SMB110A TVS diode from Littelfuse. Its peak pulse power dissipation is 600 W. Its test current is 1 mA. This device&s;s maximum clamping voltage is 152 V and minimum breakdown voltage is 105 V. Its maximum leakage current is 1 μA. This TVS diode has an operating temperature range of -55 °C to 150 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery.

TME:

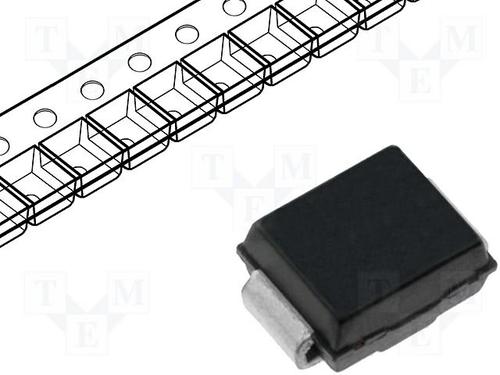

Diode: transil; 600W; 110V; 4A; unidirectional; ±5%; DO214AA
