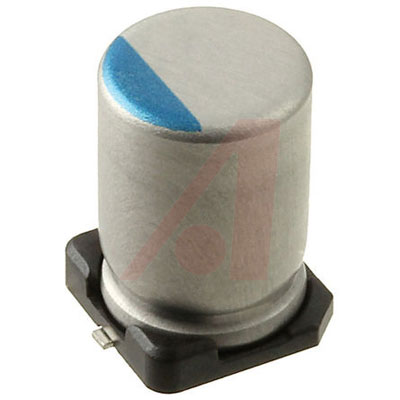

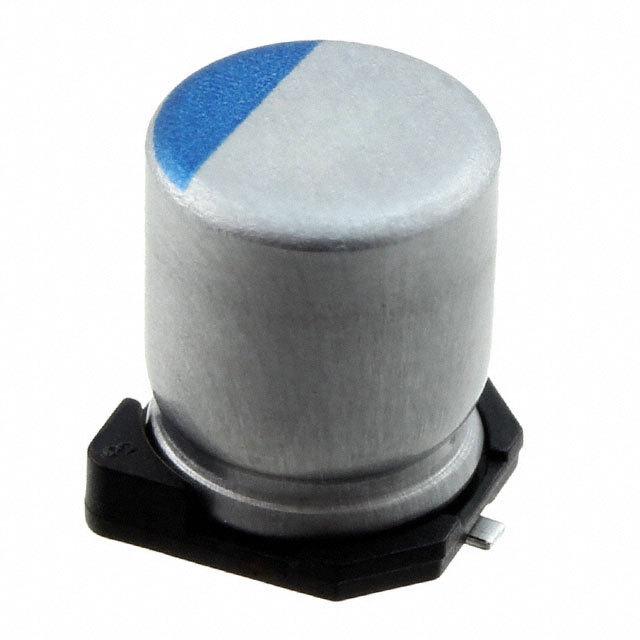

PCR1E101MCL4GS

CAP POLYMER 100uF 20% 25V SMD

**Features:

**

* Capacitance Range: 5.6 to 2700 μF

* Voltage Range: 6.3 to 100 VDC

* Tolerance: 20% at 120 Hz, 20°C

* Temperature Range: –55 to +125°C

* High Reliability, High Voltage to 100 V

* Low ESR, High Ripple Current

* Long Life of 4000 Hours at 125°C

* SMD Type : Lead Free Reflow Soldering Condition at 260°C Peak Complete Correspondence

* Added ESR Specification After the Test at –40°C

得捷:
CAP ALUM POLY 100UF 20% 25V SMD

艾睿:
Cap Aluminum Polymer 100uF 25VDC 20% 6.3 X 8mm SMD 0.027 Ohm 1600mA 4000h 125°C Automotive T/R

Allied Electronics:
100uF 25V Polymer Aluminium Electrolytic Capacitor, CR Series 4000h 6.6x6.6x7.9mm
