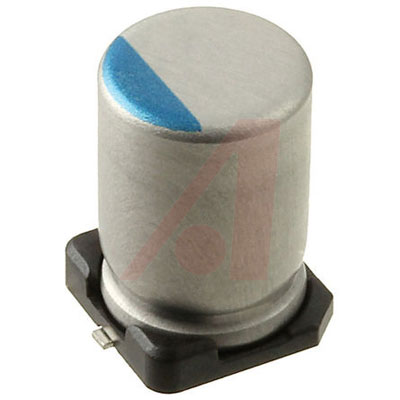

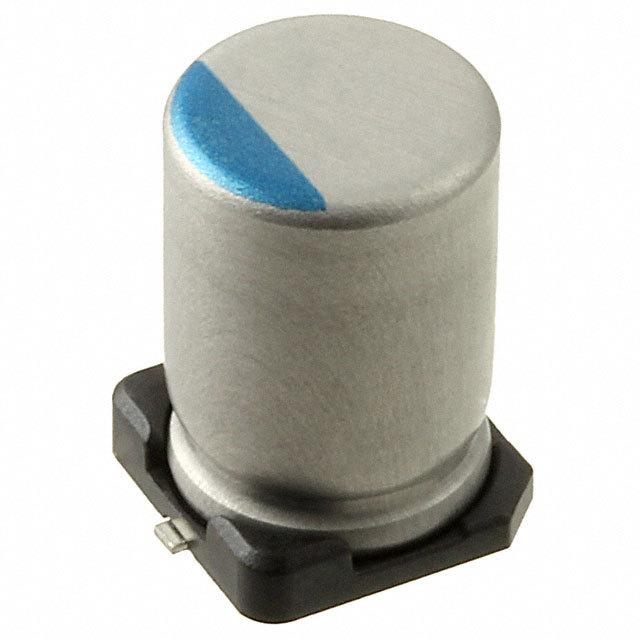

Cap Aluminum Polymer 270uF 25VDC 20% 8 X 12mm SMD 0.038Ω 3300mA 4000H 125℃ Automotive T/R
**Features:
**
* Capacitance Range: 5.6 to 2700 μF
* Voltage Range: 6.3 to 100 VDC
* Tolerance: 20% at 120 Hz, 20°C
* Temperature Range: –55 to +125°C
* High Reliability, High Voltage to 100 V
* Low ESR, High Ripple Current
* Long Life of 4000 Hours at 125°C
* SMD Type : Lead Free Reflow Soldering Condition at 260°C Peak Complete Correspondence
* Added ESR Specification After the Test at –40°C
立创商城:
270uF ±20% 25V
艾睿:
Cap Aluminum Polymer 270uF 25VDC 20% 8 X 12mm SMD 0.038 Ohm 3300mA 4000h 125°C Automotive T/R
Allied Electronics:
270uF 25V Polymer ALUM Electrolytic Capacitor, CR Series 4000h 8.3x8.3x11.9mm
安富利:
Cap Aluminum 270uF 25V 20% 8 X 12mm Cylindrical 0.019 Ohm 3300mA 4000 hr 125°C T/R
