PX0575/15/PC

BULGIN  PX0575/15/PC  电源入口插座, IEC, PC面板卡入式, 15A

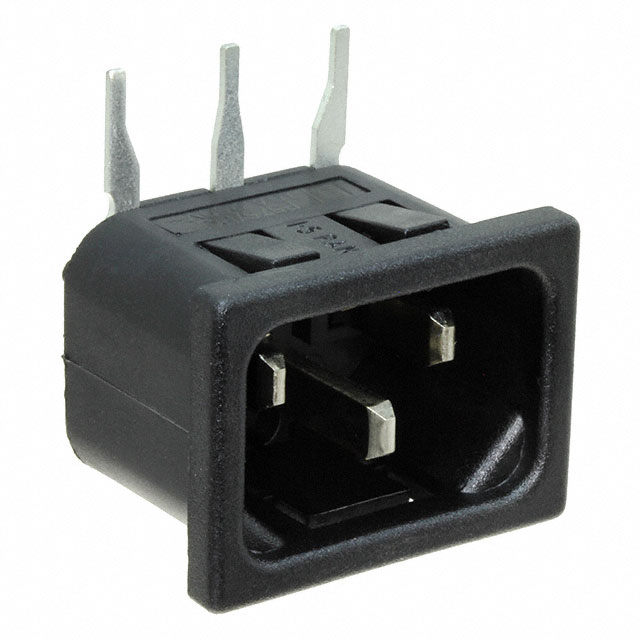

10A Snap In PCB Mount IEC 320 Plug C14

Printed circuit board and panel mounted chassis plug

Depth 32.5mm, panel cut-out 19.8 x 27.4mm

技术规格

---

触点类型： | 两路+接地触点

触点负载： | 10 A，250 V∼

开关材料： | 黄铜，镀镍

接线端子 | 铜，镀锡

触点电阻 | ≤ 10 mΩ

绝缘电阻： | > 10 3 MΩ

外壳材料 | 尼龙，自熄灭，符合 UL 94 V-O

**代码字母 **

---

A

65°C | B

65°C | C

65°C | D

65°C | E

120°C | F

155°C | G

155°C

Dimensions

---

Item type | Depth | F.C. | Fixing Hole Dia. | Panel cut-out

8 | 32.5 | - | - | 32.6x24.77

9 | - | - | - | -

10 | 21.0 | 9.17 | - | 19.8x27.4

### 注

All of these plugs and sockets have a contact resistance of <10mΩ, and an insulation resistance of >103MΩ. Their operating temperature is -40°C to +70°C

### 认可

UL recognised, CSA certified, VDE, BSI, SEMKO, IMQ
