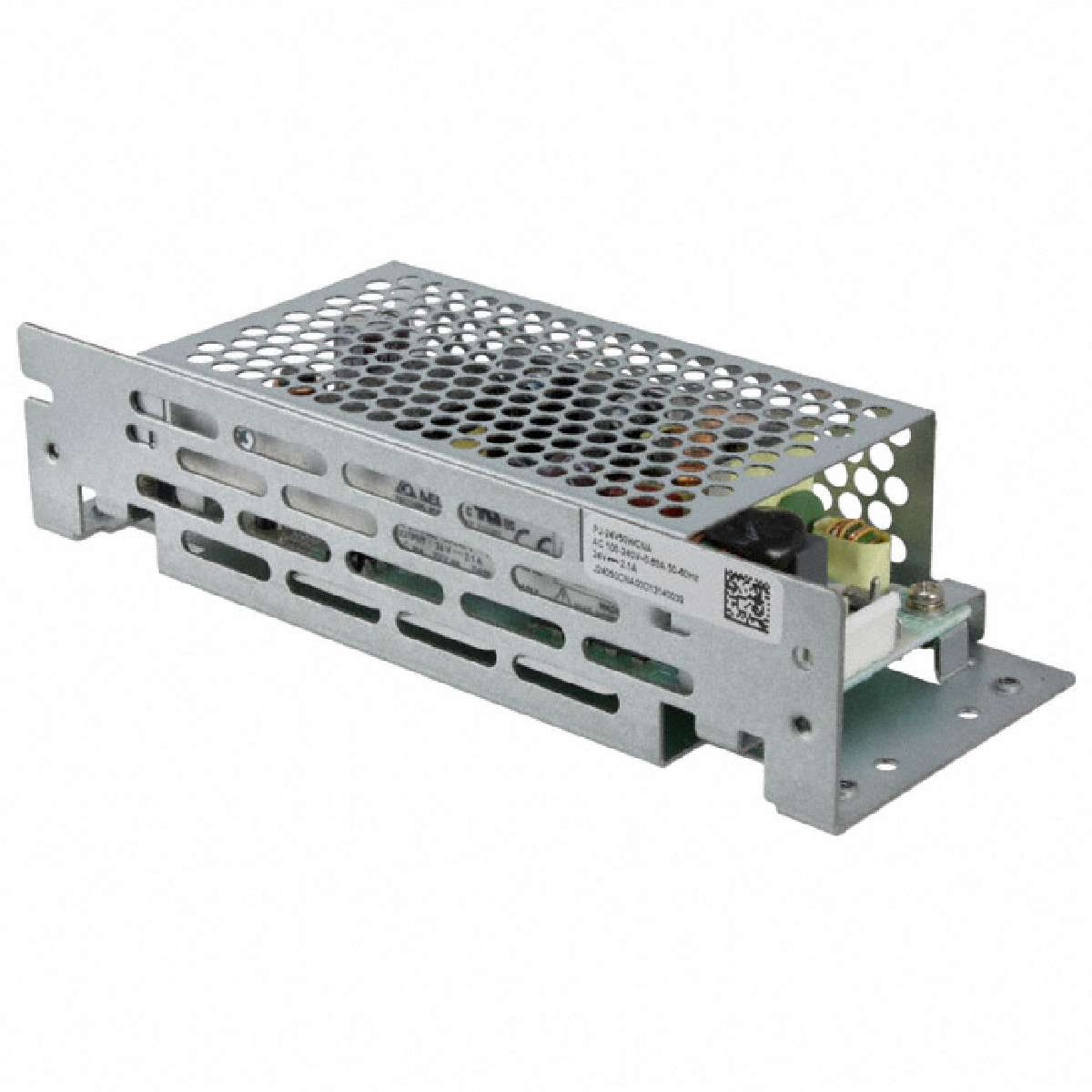

AC-DC Power Supply Single-OUT 24V 2.1A 50.4W 8Pin
封闭式，保形涂层 AC DC 转换器 输出 24V - - - 2.1A 85 ~ 264 VAC 输入
得捷:
AC/DC CONVERTER 24V 50W
贸泽:
Switching Power Supplies 50W Enclose PanelMt. 24V NoRemote On/Off
艾睿:
Safely convert alternating currents into direct currents that your electronic devices can make use of with this PJ-24V50WCNA AC to DC power supply from Delta Electronics. It has a voltage of 24 V and maximum output power of 50.4 W. This part&s;s single output can handle a current up to 2.1 A. This part has a minimum operating temperature of -10 °C and a maximum of 70 °C.
Verical:
AC/DC Power Supply Single-OUT 24V 2.1A 50.4W
额定功率 50 W
输出接口数 1
输出电压 24 V
输出电流 2.1 A
输出功率 50.4 W
隔离电压 3 kV
输入电压AC Max 264 V
输入电压AC Min 85 V
输出电流Max 2.1 A
输入电流Min 0.65 A
工作温度Max 70 ℃
工作温度Min -10 ℃
输入电压 85VAC ~ 264VAC
引脚数 8
长度 125 mm
宽度 60 mm
高度 36 mm
工作温度 -10℃ ~ 70℃
产品生命周期 Active
包装方式 Carton
制造应用 ITE（商业）
RoHS标准 RoHS Compliant
含铅标准 Lead Free
