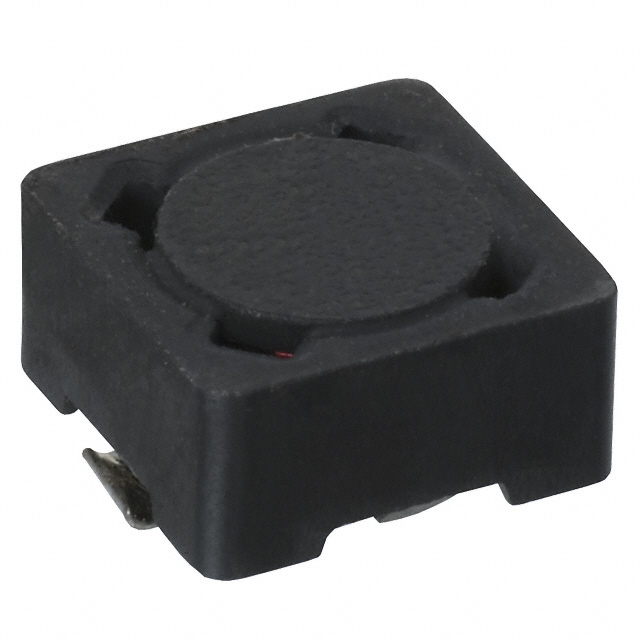

P1167.272NLT

2.7uH ±30% 3.5A

2.7 µH 屏蔽 绕线 器 3.5 A 16 毫欧最大 非标准 -

得捷:
FIXED IND 2.7UH 3.5A 16 MOHM SMD

立创商城:
2.7uH ±30% 3.5A

艾睿:

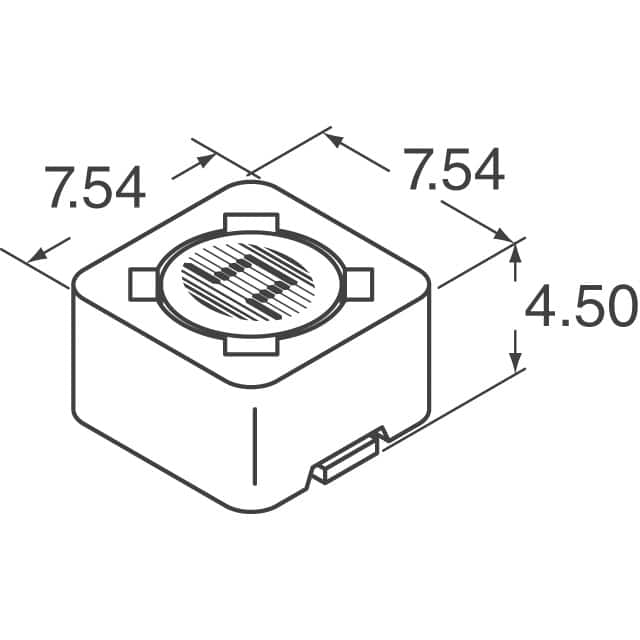

This power P1167.272NLT surface mount inductor from Pulse is ideal for saving valuable space on a PCB. This SMD inductor has an operating temperature range of -40 °C to 130 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. It has an inductance of 1.8u/2.7uRated H. This product is 7.54 mm long, 4.5 mm tall and 7.54 mm deep. Its test frequency is 100K Hz, while its minimum self-resonant frequency is &g;40M Hz. This device utilizes wirewound technology. This SMD inductor has a maximum DC current of 3.5 A with a maximum resistance of 16m Ohm.

安富利:
Ind Power Shielded Wirewound 2.7uH 30% 100KHz 3.5A T/R

Chip1Stop:
Inductor Power Shielded Wirewound 1.8uH/2.7uH 30% 100KHz 3.5A 16mOhm DCR T/R

Verical:
Inductor Power Shielded Wirewound 2.7uH/1.8uH 30% 100KHz 3.5A 0.016Ohm DCR T/R

儒卓力:
**P1167 2,7uH 3500mA 20% WWT **

CDI:
SHIELDED DRUM CORE INDUCTOR

Win Source:
FIXED IND 2.7UH 3.5A 16 MOHM SMD / 2.7 µH Shielded Wirewound Inductor 3.5 A 16mOhm Max Nonstandard
