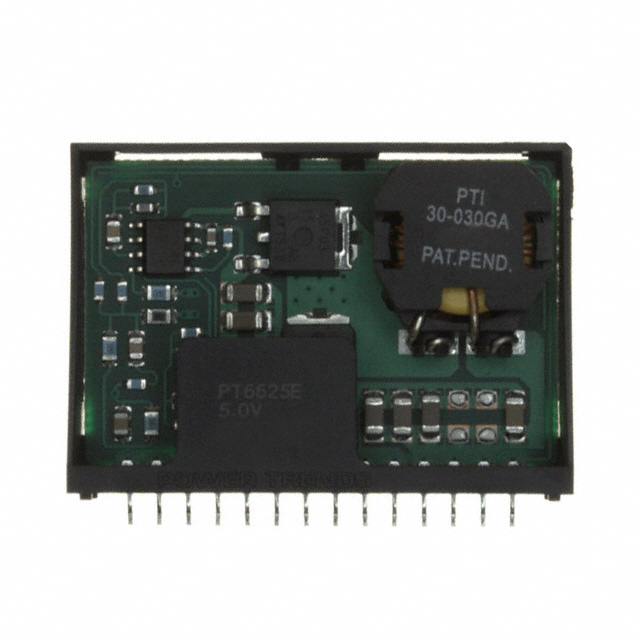

Module DC-DC 12Vin 1Out 5V 6A 14Pin SIP Module
Provide the ability to switch between voltages by using this step down DC to DC converter and switching regulator module. It has a voltage of 5 V. This part has a minimum operating temperature of -40 °C and a maximum of 85 °C.
得捷:
DC/DC CONVERTER 5V 30W
艾睿:
Provide the ability to switch between voltages by using this step down PT6625E DC to DC converter and switching regulator module. It has a voltage of 5 V. This part has a minimum operating temperature of -40 °C and a maximum of 85 °C.
Verical:
Module DC-DC 12VIN 1-OUT 5V 6A 14-Pin SIP SMD Module
Win Source:
DC DC CONVERTER 5V 30W / Non-Isolated PoL Module DC DC Converter 1 Output 5V 6A 9V - 16V Input
额定功率 30 W
输出接口数 1
输出电压 5 V
输出电流 6 A
输入电压Max 16 V
输入电压Min 9 V
输出电流Max 6 A
工作温度Max 85 ℃
工作温度Min -40 ℃
输入电压 9V ~ 16V
安装方式 Surface Mount
引脚数 14
封装 SMD-14
长度 43.4 mm
宽度 10.7 mm
高度 10.41 mm
封装 SMD-14
重量 14.0 g
工作温度 -40℃ ~ 85℃
产品生命周期 Obsolete
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
香港进出口证 NLR
