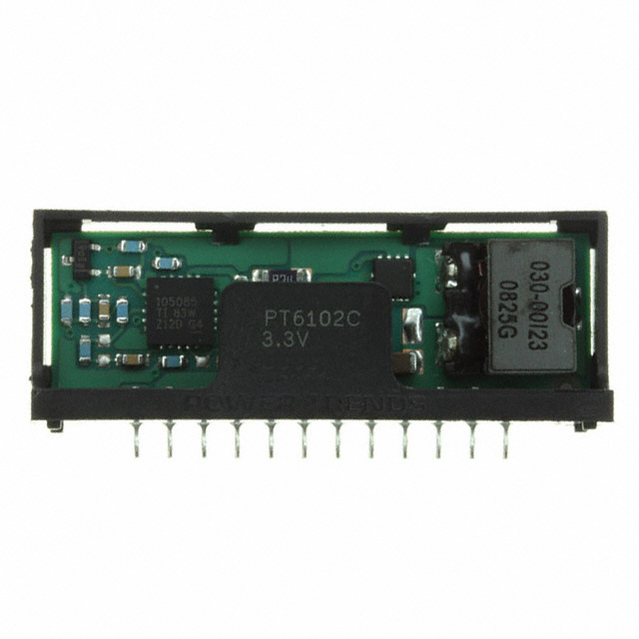

1 AMP调节正STEP- DOWN集成开关稳压器 1 Amp Adjustable Positive Step-down Integrated Switching Regulator
Provide the ability to switch between voltages by using this step down DC to DC converter and switching regulator module. It has a voltage of 3.3 V. This part has a temperature range of -40 °C to 85 °C.
得捷:
DC DC CONVERTER 3.3V
贸泽:
Non-Isolated DC/DC Converters 3.3Vout 1A Wide Inpt Adj Step-Down ISR
艾睿:
Module DC-DC 1-OUT 3.3V 1A 12-Pin SIP SMD Module
Verical:
Module DC-DC 1-OUT 3.3V 1A 12-Pin SIP SMD Module
输出接口数 1
输出电压 3.3 V
输出电流 1 A
输出功率 3.3 W
开关频率 500 KHz
拓扑结构 Buck
输入电压Max 26 V
输入电压Min 9 V
输出电流Max 1 A
额定功率Max 3.3 W
工作温度Max 85 ℃
工作温度Min -40 ℃
输入电压 9V ~ 26V
安装方式 Surface Mount
引脚数 12
封装 SIP-12
长度 43.4 mm
宽度 9.65 mm
高度 9.4 mm
封装 SIP-12
重量 5.00 g
工作温度 -40℃ ~ 85℃
产品生命周期 Obsolete
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
PT6102C TI 德州仪器 | 当前型号 | 当前型号 |
PT6102CT 德州仪器 | 完全替代 | PT6102C和PT6102CT的区别 |
