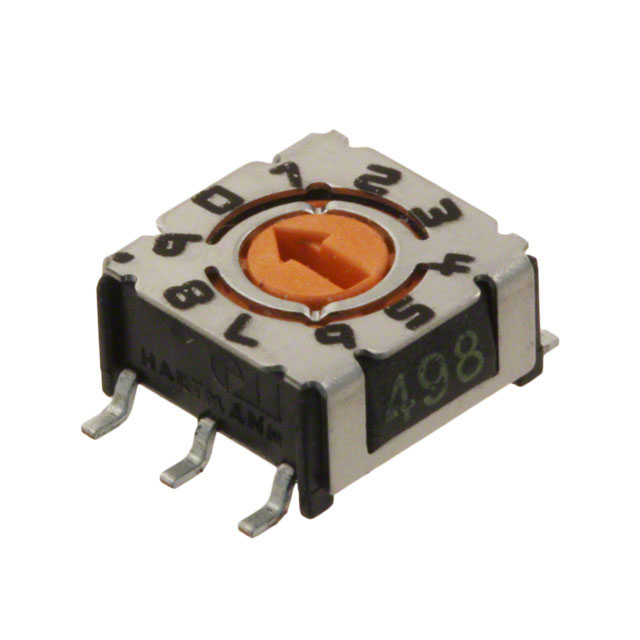

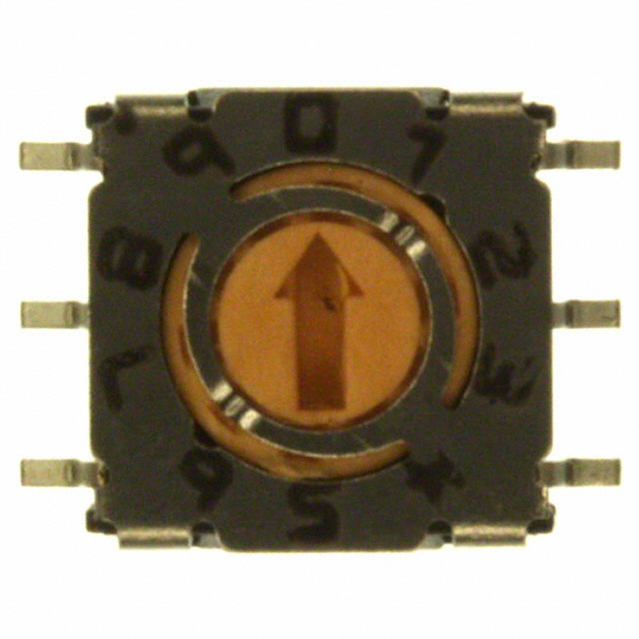

P36S102

P36S102图片1
P36S102图片2
P36S102图片3
P36S102图片4
P36S102图片5
P36S102图片6
P36S102图片7
P36S102图片8
P36S102图片9
P36S102图片10
P36S102概述

Switch DIP SP10T 10 Flush Screwdriver 0.1A 24VDC Gull Wing 10000Cycles 2.54mm SMD Tube

is manufactured by APEM and is categorized in the DIP Switches category. P36S102 is described as SW ROTARY DIP BCD COMP 100MA 24V. Perfect Parts is a supplier of Switches and other Electromechanicals.


得捷:
SW ROTARY DIP BCD COMP 100MA 24V


贸泽:
Coded Rotary Switches 10pos 0.1A 24V BCD Complement


Chip1Stop:
Switch DIP SP10T 10 Flush Screwdriver 0.1A 24VDC Gull Wing 10000Cycles 2.54mm SMD Tube


MASTER:
Switch DIP SP10T 10 Flush Screwdriver 0.1A 42VDC Gull Wing 10000Cycles 2.54mm SMD Tube


Powell:
DIP Coded Rotary Comp Of Bcd S


Electro Sonic:
Switch DIP SP10T 10 Flush Screwdriver 0.1A 42VDC Gull Wing 10000Cycles 2.54mm SMD Tube


P36S102中文资料参数规格
技术参数

针脚数 10

额定电压 24 VDC

封装参数

安装方式 Surface Mount

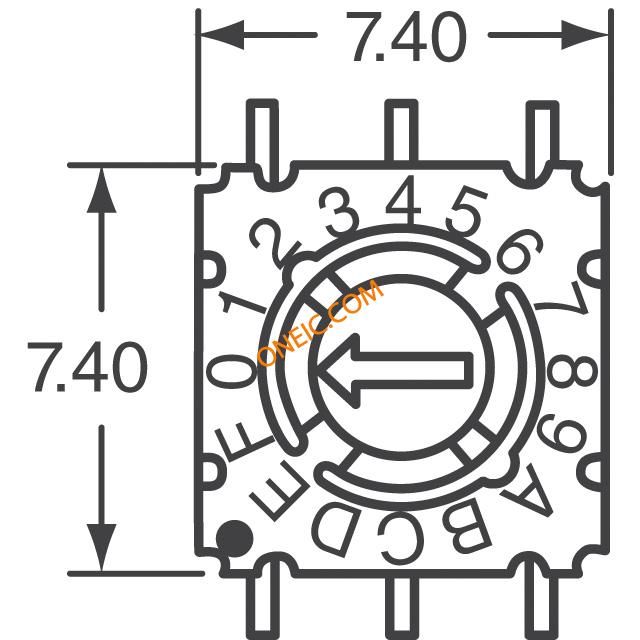

外形尺寸

长度 7.40 mm

宽度 9.5 mm

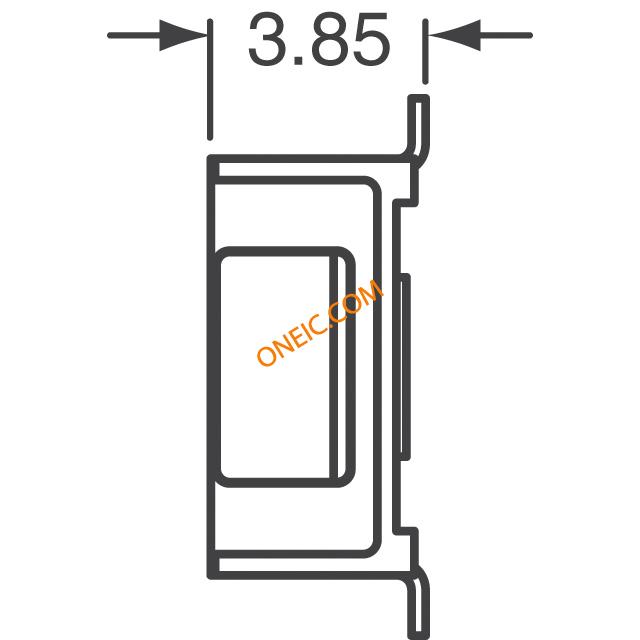

高度 3.85 mm

物理参数

触点材质 Phosphor Bronze

工作温度 -30℃ ~ 90℃

其他

产品生命周期 Active

包装方式 Tube

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买P36S102
型号: P36S102
制造商: Apem Components
描述:Switch DIP SP10T 10 Flush Screwdriver 0.1A 24VDC Gull Wing 10000Cycles 2.54mm SMD Tube
替代型号P36S102
型号/品牌 代替类型 替代型号对比

P36S102

Apem Components

当前型号

当前型号

PT65101

Apem Components

完全替代

P36S102和PT65101的区别

PT65102

Apem Components

完全替代

P36S102和PT65102的区别

PT65301

Apem Components

完全替代

P36S102和PT65301的区别
