机架式电源 POWER SUPPLY

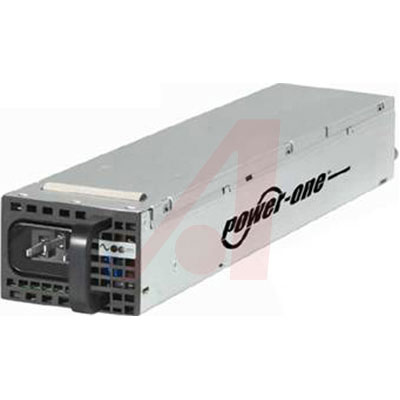

The PFE Series is a 600-1100 Watt power-factor-corrected PFC power supply with both AC and DC input and forward and reverse airflow versions. The PFE Series converts main power into an output 12 VDC for power Intermediate BUS Architecture IBA in high performance and reliability servers, routers, and network switches. The PFE Series meets international safety standards and displays the CE Mark for the European Low Voltage Directive LVD.- .
- *
Features
**
* Best-in-Class, 80 PLUS Certified “Platinum” Efficiency**
**
* Wide Input Voltage Range: 90-264 VAC**
**
* AC Input with Power Factor Correction**
**
* Always-On 16.5 W Programmable Standby Output 3.3/5 V**
**
* Hot-Plug Capable**
**
* Parallel Operation with Active Digital Current Sharing**
**
* Full Digital Controls for Improved Performance**
**
* High Density Design: 25.6 W/in.3**
**
* Small Form Factor: 54.5 × 40.0 × 321.5 mm**
**
* I2C Communication Interface for Control, Programming and Monitoring with PSMI and PMBus™ Protocol**
**
* Overtemperature, Output Overvoltage and Overcurrent Protection**
**
* 256 Bytes of EEPROM for User Information**
**
* 2 Status LEDs: AC OK and DC OK with Fault Signaling
额定功率 1100 W
输出接口数 1
输出电压 12 V
输出电流 70 A
输出功率 1100 W
输入电压AC Max 264 V
输入电压AC Min 90 V
输出电流Max 90A, 3.3A
输入电流Min 13 Arms
输出功率Max 1080 W
额定功率Max 1097 W
工作温度Max 45 ℃
工作温度Min 0 ℃
输入电压 90VAC ~ 264VAC
引脚数 35
长度 321.5 mm
宽度 54.5 mm
高度 40 mm
工作温度 0℃ ~ 70℃
产品生命周期 Active
制造应用 ITE（商业）
RoHS标准 RoHS Compliant
含铅标准 Lead Free
