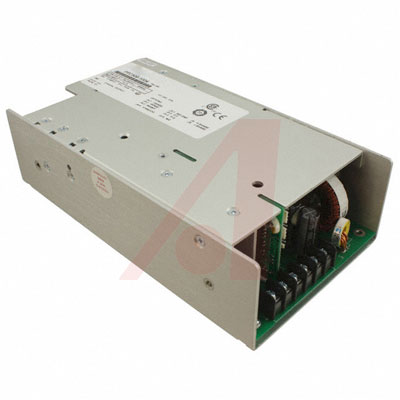

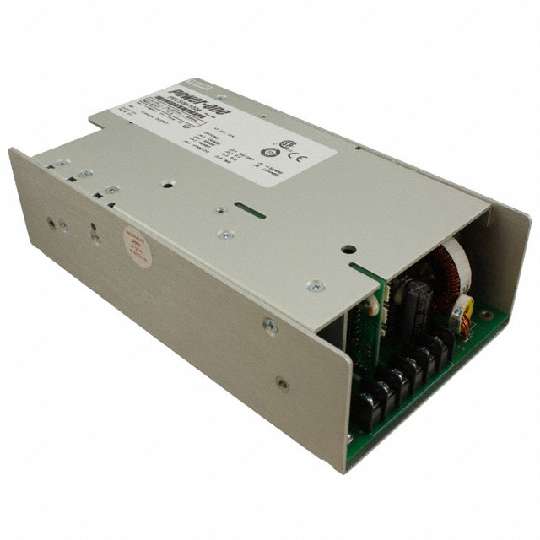

BEL POWER SOLUTIONS INC 500W 1输出 嵌入式开关模式电源（SMPS）, 24V dc, 21A
PFC500 Series Switching Power Supplies
* Fully-regulated outputs
* Remote sense
* Logic level inhibit
* Current share, power fail, and power good signals
* Optional isolation diodes for parallel or redundant operation
* DC input versions 36-75VDC
* Wide Range Input
* Single, Triple, and Quad Output Models
* Power Factor Correction Meets EN61000-3-2
* CISPR 22 Level B, FCC Level B
* Fan Option — Add "F" Suffix
* Main Output Remote Sense
* Fully Regulated Outputs
* >0.98 Power Factor Correction
* UL 1950 and EN60950 Approved
额定功率 500 W
输出接口数 1
输出电压 24 V
输出电流 21 A
输出功率 504 W
输入电压DC Max 75 V
输入电压DC Min 36 V
输入电压AC Max 264 V
输入电压AC Min 85 V
输出电流Max 21 A
输入电流Min 7.8 Arms
输出功率Max 500 W
额定功率Max 500 W
工作温度Max 70 ℃
工作温度Min 0 ℃
输入电压 85VAC ~ 264VAC
引脚数 10
高度 63.5 mm
工作温度 0℃ ~ 70℃
产品生命周期 Active
制造应用 ITE（商业）
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8504409530
