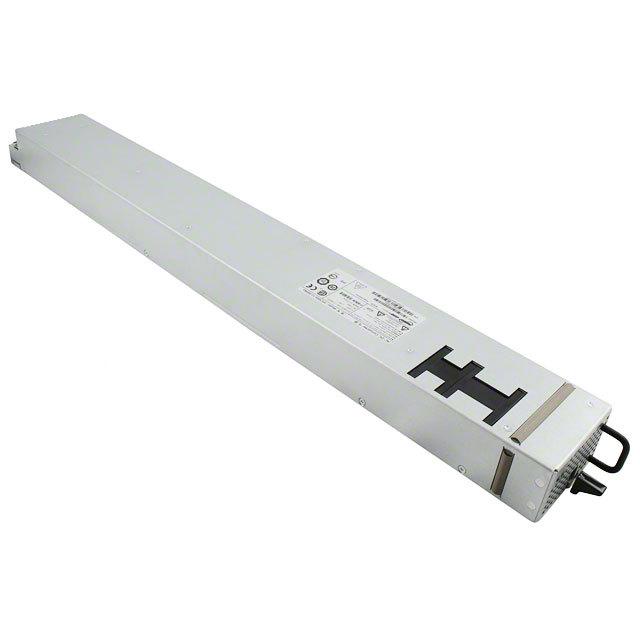

AC/DC前端电源PSU, PFC, 1输出, 固定输出, 3 kW, 12 V, 244 A, PFE Series
With this AC to DC power supply from Bel Power Solutions your electronic device will be able to operate by using direct current instead of alternating current. It has a voltage of 12.3 V and maximum output power of 3000Typ W. This part"s single output can handle a current up to 244Typ A. This part has a temperature range of 0 °C to 55 °C.
得捷:
AC/DC CONVERTER 12V 3000W
e络盟:
AC/DC前端电源PSU, PFC, ITE, 1输出, 固定输出, 3 kW, 12 V, 244 A
艾睿:
AC/DC Power Supply Single-OUT 12.3V 244A 3000W
Verical:
AC/DC Power Supply Single-OUT 12.3V 244A 3000W
额定功率 3000 W
输出接口数 1
输出电压 12.3 V
输出功率 3000 w
隔离电压 100 V
输入电压DC Max 400 V
输入电压DC Min 192 V
输入电压AC Max 300 V
输入电压AC Min 90 V
输出电流Max 244 A
输入电流Min 17 Arms
输出功率Max 3 kW
工作温度Max 55 ℃
工作温度Min 0 ℃
输入电压 180VAC ~ 300VAC
安装方式 Rack
长度 23.7 in
宽度 2.7 in
高度 2.7 in
工作温度 0℃ ~ 55℃
产品生命周期 Active
制造应用 ITE（商业）
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
