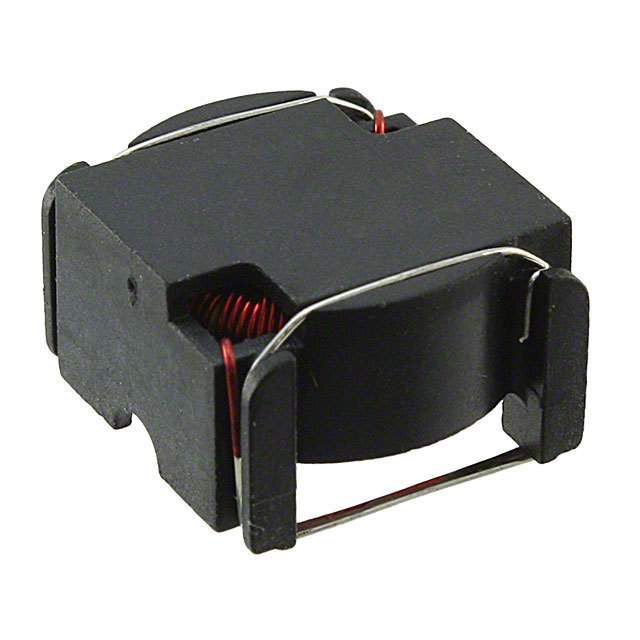

PULSE ENGINEERING PE-53932SNLT 电感, 37uH, SMT, 2.24A, 9.9X15.2MM
37 µH 屏蔽 环形 器 2.24 A 100 毫欧 非标准 -
得捷:
FIXED IND 37UH 2.24A 100MOHM SMD
e络盟:
PULSE ENGINEERING PE-53932SNLT 电感, 37uH, SMT, 2.24A, 9.9X15.2MM
艾睿:
An ideal space-saving electronic component is this power PE-53932SNLT surface mount inductor from Pulse. This SMD inductor has an operating temperature range of -40 °C to 130 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. It has a tolerance of 20%. This product is 15.75 mm long, 9.91 mm tall and 15.24 mm deep. This SMD inductor has a maximum DC current of 2.24 A with a maximum resistance of 100mTyp Ohm. It has an inductance of 37u H. This device utilizes wirewound technology.
安富利:
Ind Power Wirewound 37uH 20% 2.24A T/R
Chip1Stop:
Ind Power Wirewound 37uH 20% 2.24A T/R
Verical:
Inductor Power Wirewound 37uH 20% 2.24A 100mOhm DCR T/R
额定电流 2.24 A
电感 37 µH
产品系列 PE-53932SNLT
电感公差 ±20 %
电阻DC) 100 mΩ
工作温度Max 125 ℃
工作温度Min -40 ℃
电阻DC Max 0.1 Ω
安装方式 Surface Mount
引脚数 2

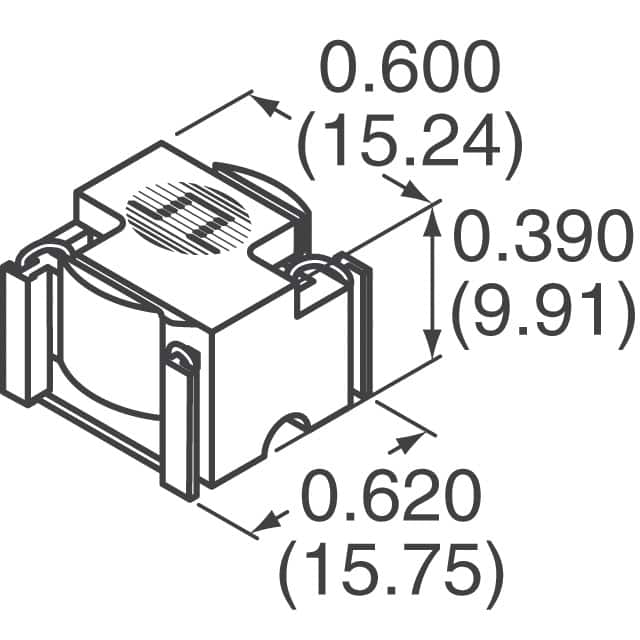

封装 15.75mm x 15.24mm x 9.91mm
长度 17.78 mm
宽度 17.02 mm
高度 9.91 mm
封装 15.75mm x 15.24mm x 9.91mm
工作温度 -40℃ ~ 130℃
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
PE-53932SNLT Pulse Electronics 普思电子 | 当前型号 | 当前型号 |
PE-53932SNL 普思电子 | 功能相似 | PE-53932SNLT和PE-53932SNL的区别 |
PE-53932S 普思电子 | 功能相似 | PE-53932SNLT和PE-53932S的区别 |
PE-53932ST 普思电子 | 功能相似 | PE-53932SNLT和PE-53932ST的区别 |
