PI5C32X384BE

Bus Switch 4Element CMOS 20IN 48Pin BQSOP Tube

Description

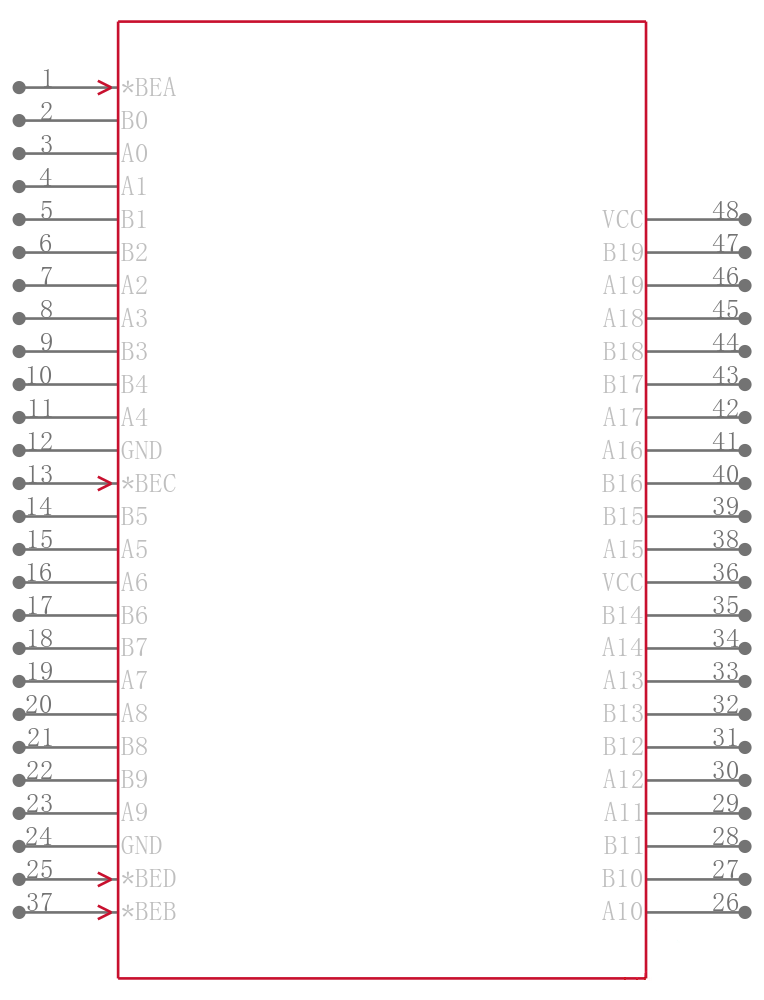

’s PI5C32X384 and PI5C32X384C are 20-bit bus switches designed with a low On-Resistance allowing inputs to be connected directly to outputs. The bus switch creates no additional propagational delay or additional ground bounce noise. The switches are turned ON by the Bus Enable BE input signal. Four bus enable signals are provided, one for each of the upper and lower five bits of the two 10-bit buses.

Features

• Near-Zero propagation delay

• 5Ω switches connect inputs to outputs

• Direct bus connection when switches are ON

• Ultra-low quiescent power 32X384 0.2µA typical

   – Ideally suited for notebook applications

• Packaging Pb-free & Green Available:

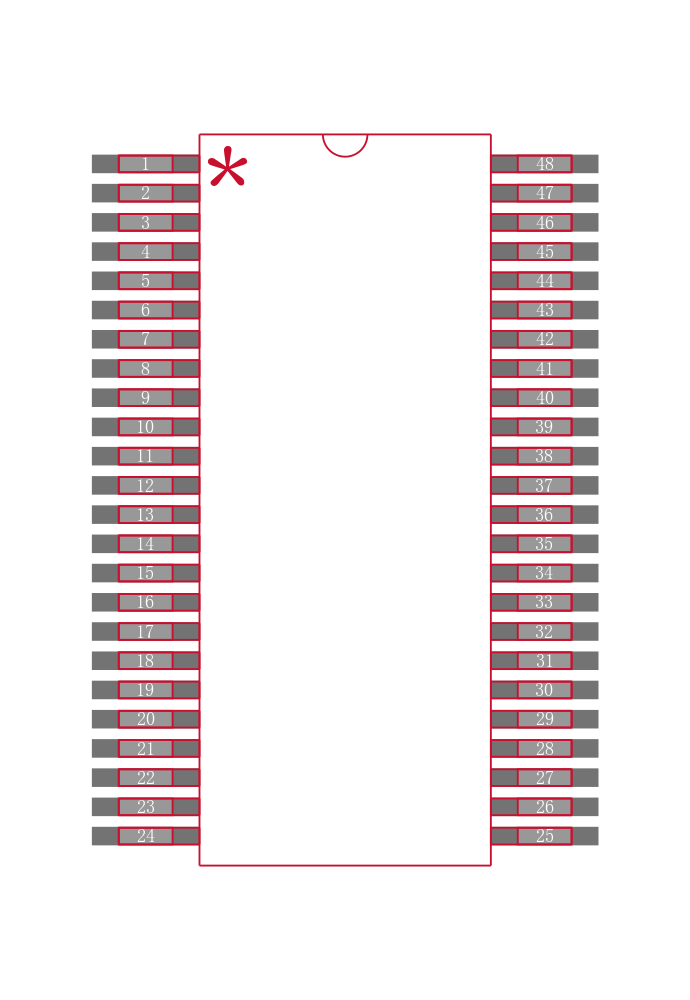

   – 48-pin 150-mil wide plastic BQSOP B

   – 48-pin 240-mil wide plastic TSSOP A
