680uH ±20% 370mA
680µH Shielded Wirewound Inductor 370mA 1.72Ohm Max Nonstandard
得捷:
FIXED IND 680UH 370MA 1.72 OHM
艾睿:

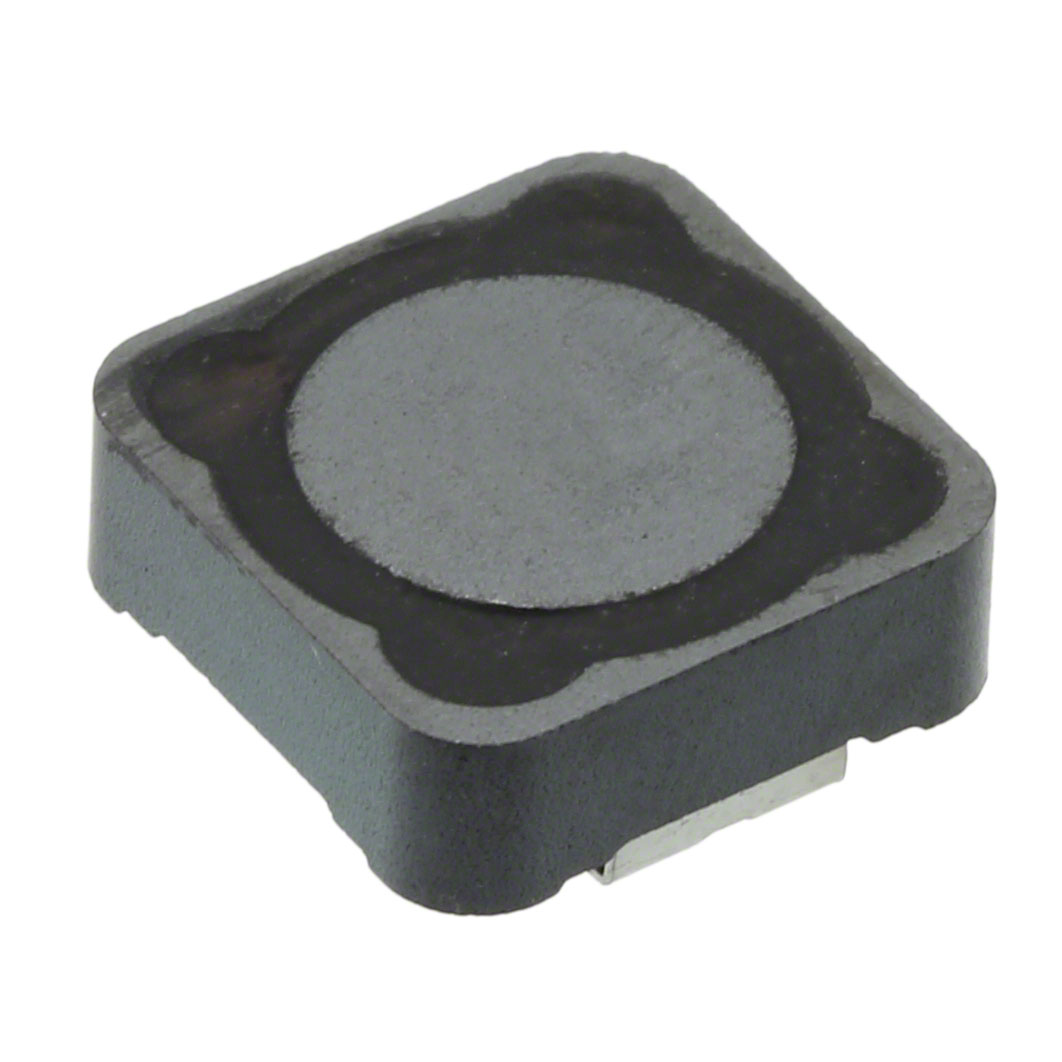

Use this power PA4303.684NLT surface mount inductor from Pulse to make any circuit look clean and compact. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. It has a tolerance of 20%. This SMD inductor has a maximum DC current of 370m A with a maximum resistance of 1.72 Ohm. Its test frequency is 100K Hz. It has an inductance of 680u H. This device is made with drum core technology. This product is 12.5 mm long, 4.5 mm tall and 12.5 mm deep.
Verical:
Inductor Power Shielded Drum Core 680uH 20% 100KHz 0.37A 1.72Ohm DCR T/R
