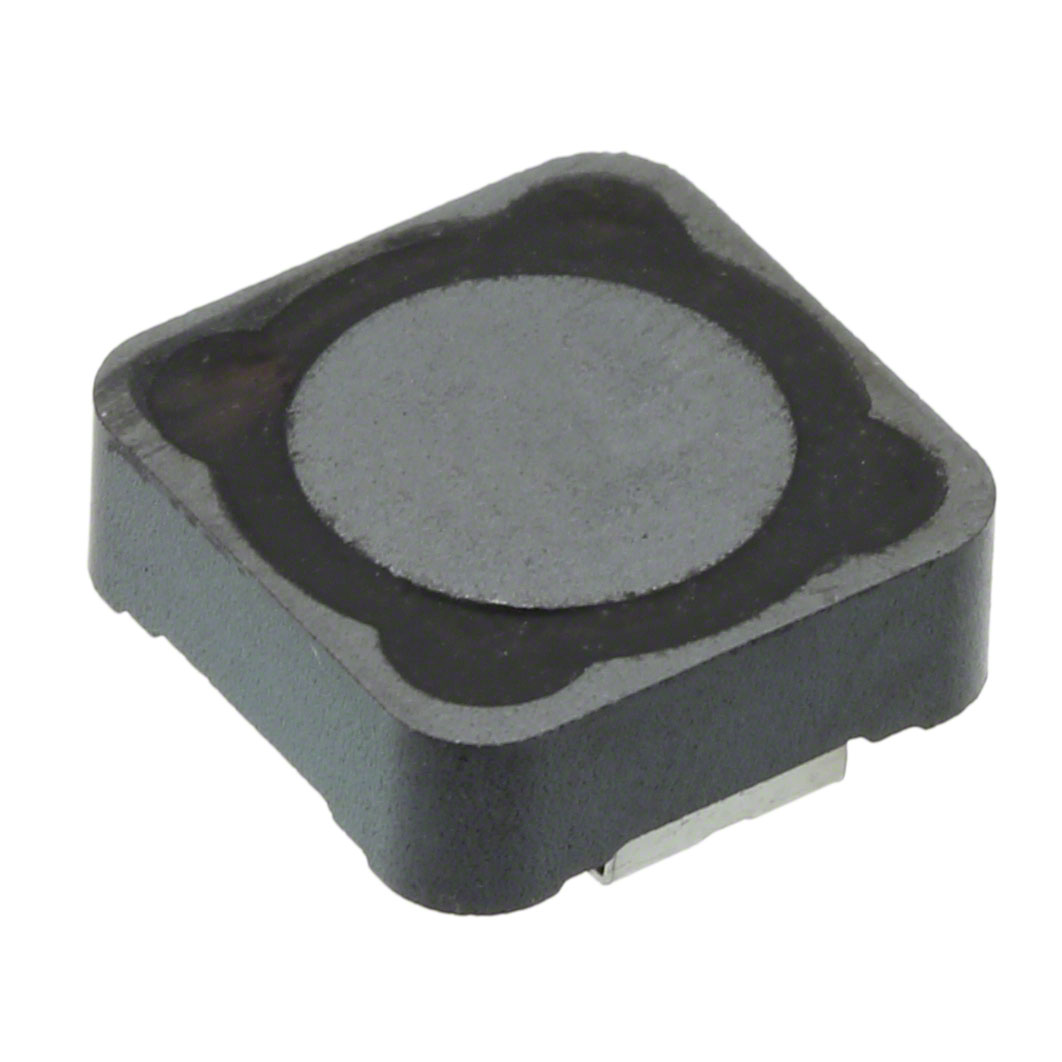

PA4304.472NLT

4.7uH ±30% 4.7A

4.7µH Shielded Wirewound Inductor 4.7A 20.5mOhm Max Nonstandard

立创商城:
4.7uH ±30%

得捷:
FIXED IND 4.7UH 4.7A 20.5 MOHM

艾睿:
Does your electronic circuit design require filtering, power supplies, and other similar functions? Then this power PA4304.472NLT surface mount inductor from Pulse is perfect for you! This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. It has an inductance of 4.7u H. This device is made with drum core technology. Its test frequency is 100K Hz. This SMD inductor has a maximum DC current of 4.7 A with a maximum resistance of 20.5m Ohm. This product is 12.5 mm long, 6 mm tall and 12.5 mm deep.

安富利:
Ind Power Shielded 4.7uH 30% 100KHz 4.7A T/R

Verical:
Inductor Power Shielded Drum Core 4.7uH 30% 100KHz 4.7A 0.0205Ohm DCR T/R
