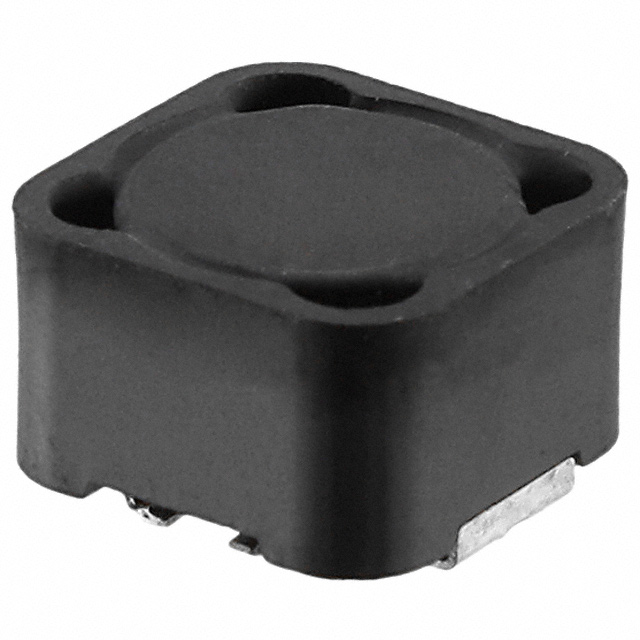

P1172.333NLT

33uH ±20% 3A

33 µH 屏蔽 绕线 器 3 A 64.8 毫欧最大 非标准 -

得捷:
FIXED IND 33UH 3A 64.8 MOHM SMD

立创商城:
33uH ±20% 3A 64.8mΩ

艾睿:
This power P1172.333NLT surface mount inductor from Pulse is ideal for applications where space is a major influence of circuit design. This SMD inductor has an operating temperature range of -40 °C to 130 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This SMD inductor has a maximum DC current of 3 A with a maximum resistance of 64.8m Ohm. It has an inductance of 24.8u/33uRated H. This product is 12.24 mm long, 8 mm tall and 12.24 mm deep. This device utilizes wirewound technology. It has a tolerance of 20%. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 10M Hz.

安富利:
Ind Power Shielded Wirewound 33uH 20% 100KHz 3A T/R

Verical:
Inductor Power Shielded Wirewound 33uH/24.8uH 20% 100KHz 3A 0.0648Ohm DCR T/R

儒卓力:
**P1172 33uH 3000mA 20% WWT **

CDI:
SHIELDED DRUM CORE INDUCTOR
