PHE840EZ7220MF14R06L2

EMI抑制器，类X2 ，金属化聚丙烯 EMI suppressor, class X2, metallized polypropylene

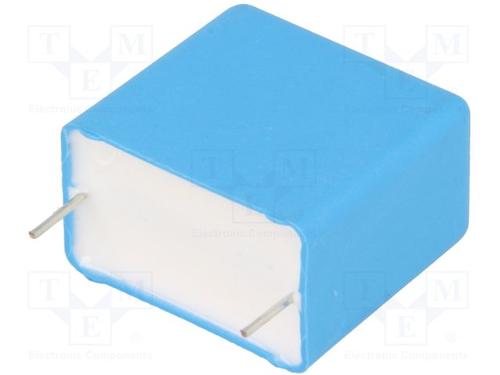

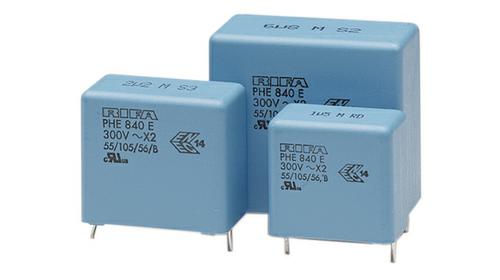

Ideal for smoothing voltages or improving signals, Kemet"s emi suppression plastic film capacitor is a low-cost solution. It can withstand a voltage of 760 VDC|300VAC. This polypropylene film capacitor has a maximum operating temperature of 105 °C. The PHE840EZ7220MF14R06L2 polypropylene film capacitor has a radial termination style. It has a tolerance of 20%. Its capacitance value is 2.2uF. This part has a lead diameter of 0.8 mm and a pitch of 27.5 mm. This product is 31.5Max mm long, 28Max mm tall and 17.5Max mm deep.
