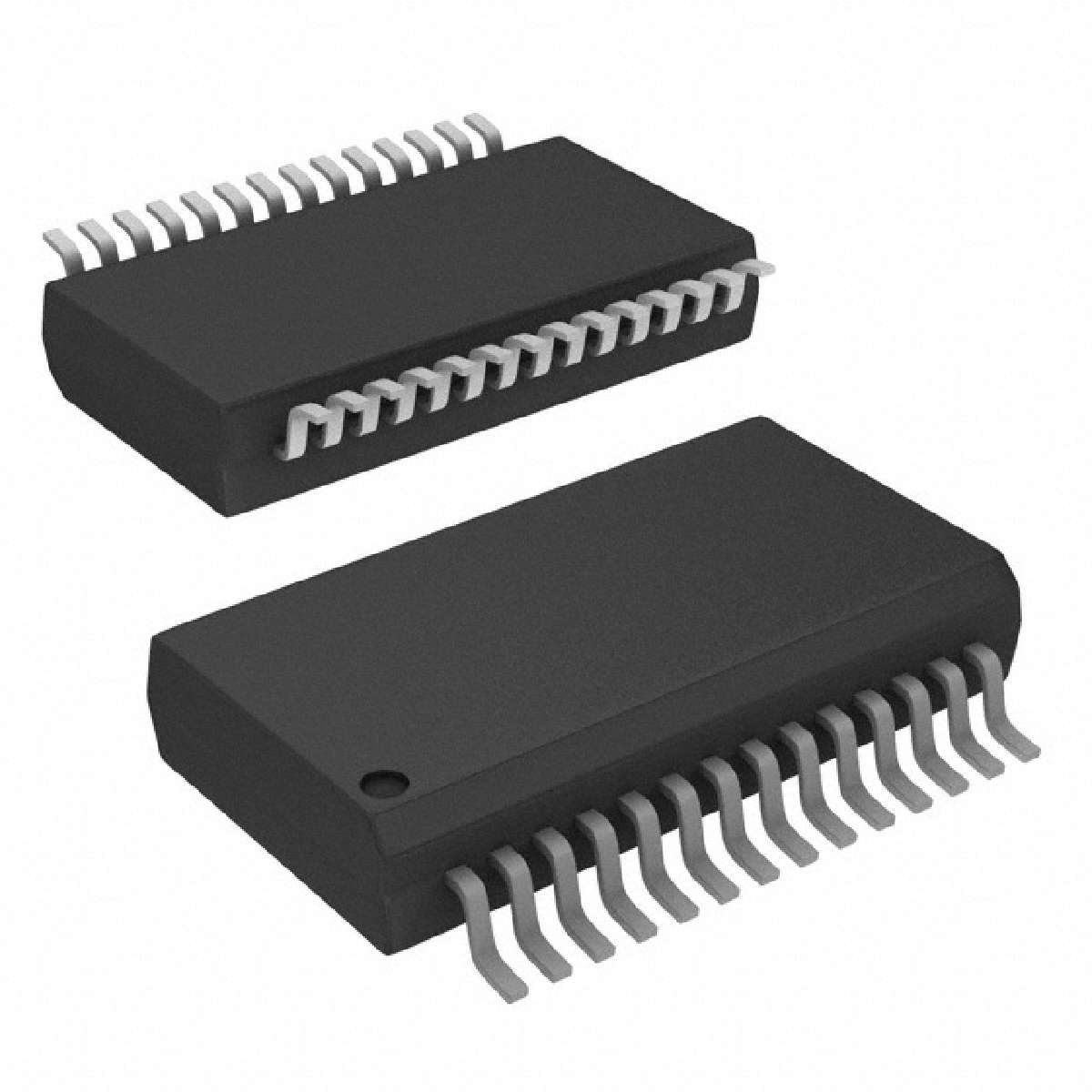

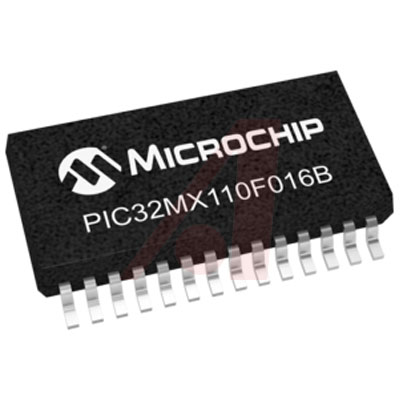

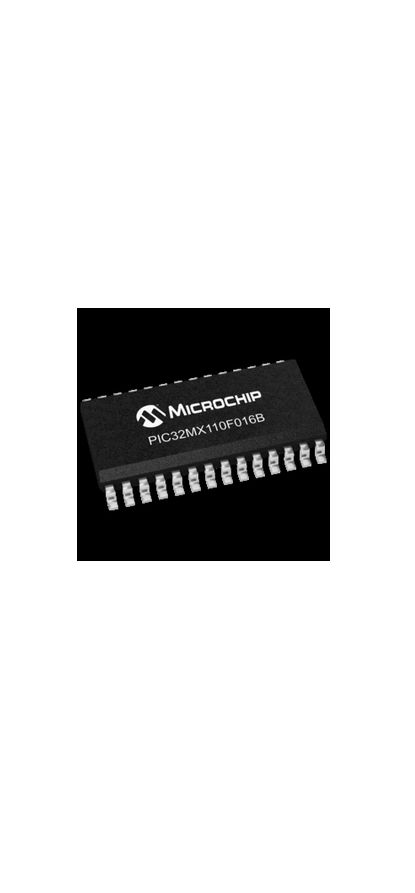

MICROCHIP PIC32MX110F016B-I/SS 芯片, 微控制器, 32位, PIC32, 40MHZ, SSOP-28
The is a high performance PIC32MX family 32-bit Microcontroller packs powerful PIC®RISC architecture with MIPS M4K core. This product offer all of the advantages of the well recognized high-performance x32 architecture with standardized features including 16kB of addressable program memory size, 3kB of Auxiliary flash, 4096bytes of data memory size, Three comparators and 10-channel 10-bit analog-to-digital A/D converter. This device operates at a maximum frequency of 40MHz with wide operating voltage of 2.3 to 3.6V.
频率 40 MHz
电源电压DC 2.30V min
针脚数 28
时钟频率 40.0 MHz
RAM大小 4 KB
位数 32
FLASH内存容量 16 KB
UART数量 2
模数转换数ADC 1
输入/输出数 21 Input
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压Max 3.6 V
电源电压Min 2.3 V
安装方式 Surface Mount
引脚数 28

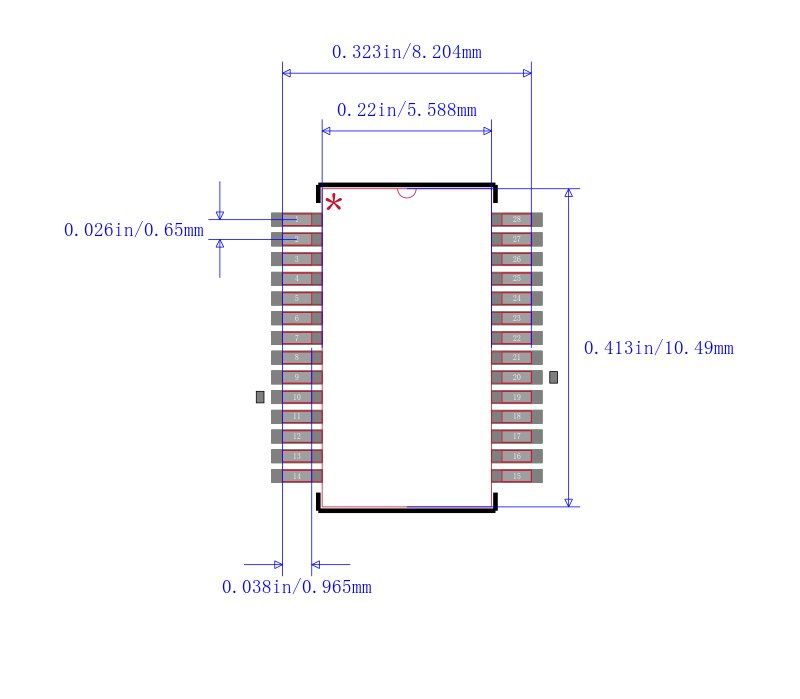

封装 SSOP-28
封装 SSOP-28
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
制造应用 多媒体, 嵌入式设计与开发, Multimedia, Communications & Networking, Audio, 通信与网络, 音频, Embedded Design & Development
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
PIC32MX110F016B-I/SS Microchip 微芯 | 当前型号 | 当前型号 |
PIC32MX110F016BT-I/SS 微芯 | 类似代替 | PIC32MX110F016B-I/SS和PIC32MX110F016BT-I/SS的区别 |
