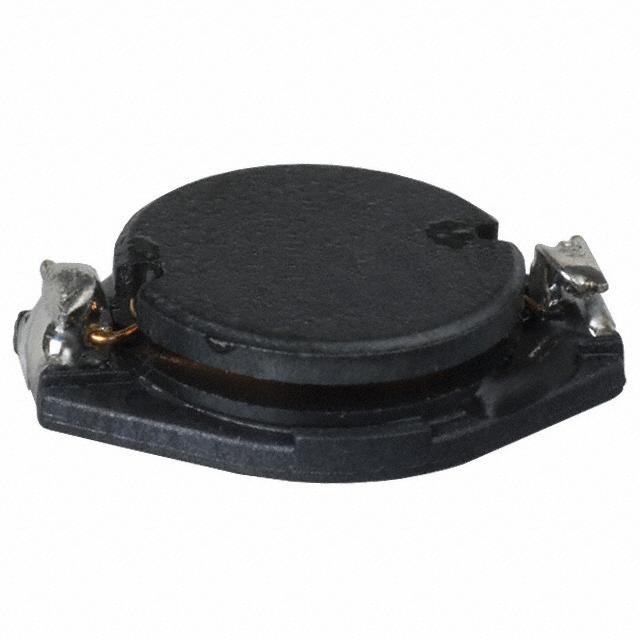

BOURNS PM3308-221M-RC 表面贴装功率电感器, PM3308系列, 220 µH, ± 20%, 非屏蔽, 1900 µohm, 400 mA
无屏蔽 绕线 器 1.9 欧姆最大 非标准
得捷:
FIXED IND 220UH 400MA 1.9OHM SMD
e络盟:
BOURNS PM3308-221M-RC 表面贴装功率电感器, PM3308系列, 220 µH, ± 20%, 非屏蔽, 1900 µohm, 400 mA
艾睿:
This power PM3308-221M-RC surface mount inductor from Bourns is ideal for applications where space is a major influence of circuit design. This SMD inductor has a minimum operating temperature of -55 °C and a maximum of 125 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. Its test frequency is 100K Hz. This device is made with bobbin core technology. This product is 13 mm long, 3 mm tall and 9.5 mm deep. It has an inductance of 220u H. This SMD inductor has a maximum DC current of 400mA typ with a maximum resistance of 1.9 Ohm. It has a tolerance of 20%.
安富利:
Ind Power Bobbin Core 220uH 20% 100KHz Ferrite 400mA T/R
Verical:
Inductor Power Bobbin Core 220uH 20% 100KHz Ferrite 400mA 1.9Ohm DCR T/R
MASTER:
Inductor Power Bobbin Core 220uH 20% 100KHz Ferrite 400mA 1.9Ohm DCR T/R
Electro Sonic:
Inductor Power Bobbin Core 220uH 20% 100KHz Ferrite 400mA 1.9Ohm DCR T/R
额定电流 400 mA
容差 ±20 %
电感 220 µH
电感公差 ±20 %
测试频率 100 kHz
电阻DC) 1.9 Ω
工作温度Max 125 ℃
工作温度Min -55 ℃
电阻DC Max 0.0019 Ω
安装方式 Surface Mount
引脚数 2
封装 13mm x 9.5mm x 3mm
高度 3 mm
封装 13mm x 9.5mm x 3mm
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8504508000
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
PM3308-221M-RC Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
DO3308P-224MLB 线艺 | 功能相似 | PM3308-221M-RC和DO3308P-224MLB的区别 |
HM76-20221JLFTR13 Magnetics | 功能相似 | PM3308-221M-RC和HM76-20221JLFTR13的区别 |
