600瓦峰值功率齐纳瞬态电压抑制器 600 Watt Peak Power Zener Transient Voltage Suppressors
600 Watt Peak Power Zener Transient Voltage Suppressors

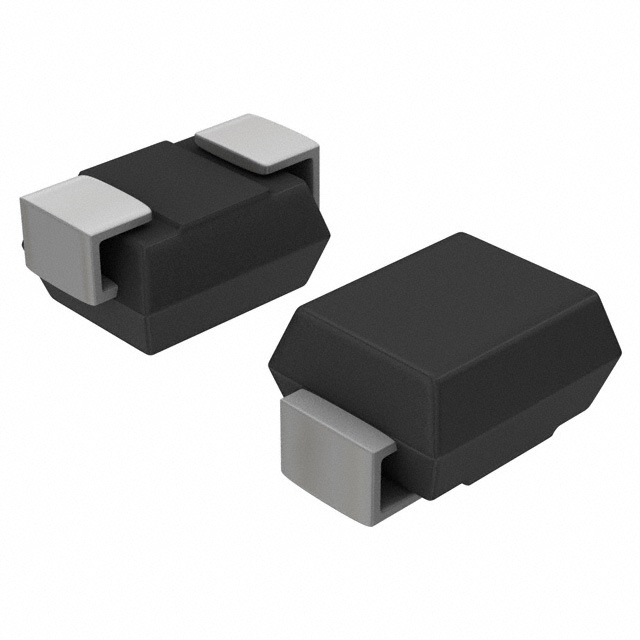

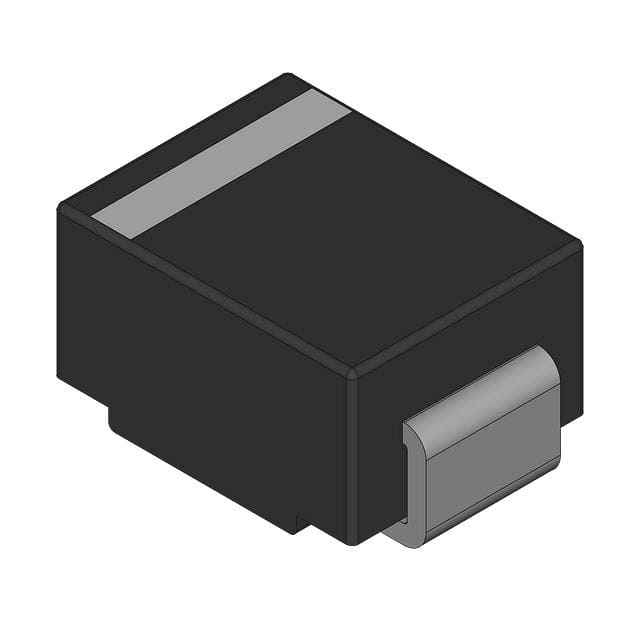

BidirectionalPLASTIC SURFACE MOUNT ZENER OVERVOLTAGE TRANSIENT SUPPRESSORS
9.4−78 VOLTS 600 WATT PEAK POWER
The SMB series is designed to protect voltage sensitive components from high voltage, high energy transients. They have excellent clamping capability, high surge capability, low zener
impedance and fast response time. The SMB series is supplied in ’s exclusive, cost-effective, highly reliable Surmeticpackage and is ideally suited for use in communication
systems, automotive, numerical controls, process controls, medical equipment, business machines, power supplies and many other industrial/consumer applications.
Features
•Working Peak Reverse Voltage Range − 9.4 to 77.8 V
•Standard Zener Breakdown Voltage Range − 11 to 91 V
•Peak Power − 600 W @ 1 ms
•ESD Rating of Class 3 >16 KV per Human Body Model
•Maximum Clamp Voltage @ Peak Pulse Current
•Low Leakage < 5 A Above 10 V
•UL 497B for Isolated Loop Circuit Protection
•Response Time is Typically < 1 ns
•Pb−Free Packages are Available
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
P6SMB47CAT3 ON Semiconductor 安森美 | 当前型号 | 当前型号 |
P6SMB47CAT3G 安森美 | 完全替代 | P6SMB47CAT3和P6SMB47CAT3G的区别 |
SMA6J40A-TR 意法半导体 | 功能相似 | P6SMB47CAT3和SMA6J40A-TR的区别 |
P6SMB47CAHE3/52 威世 | 功能相似 | P6SMB47CAT3和P6SMB47CAHE3/52的区别 |
