PMR100HZPJV4L0

PMR100HZPJV4L0图片1

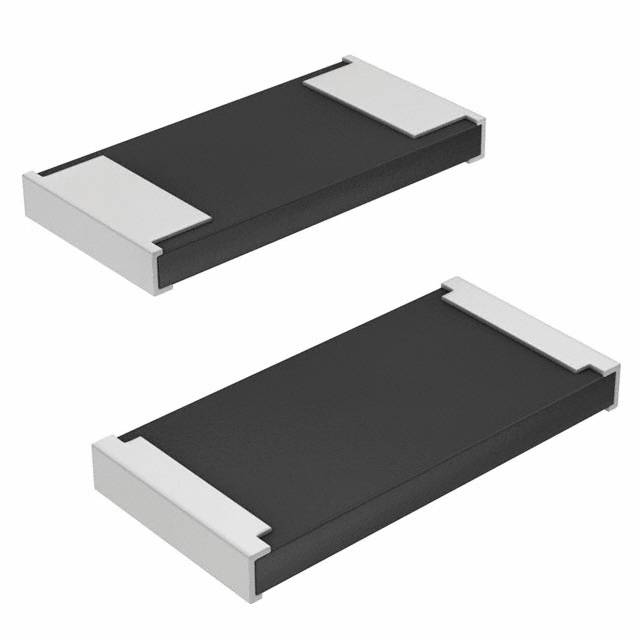

PMR100HZPJV4L0图片2
PMR100HZPJV4L0图片3
PMR100HZPJV4L0概述

2512 0.004Ω ±5% 2W ±100ppm/℃

4 mOhms ±5% 2W Chip Resistor 2512 6432 Metric Automotive AEC-Q200, Current Sense Thick Film


欧时:
Ultra-low ohmic chip resistor 5% 2512 4


立创商城:
4mΩ ±5% 2W


得捷:
RES 0.004 OHM 5% 2W 2512


艾睿:
Res 2512 0.004 Ohm 5% 2W ±100ppm/°C Pad SMD Automotive T/R


Chip1Stop:
Ultra low ohmic Metal plate / High power type Shunt


Verical:
Res 2512 0.004 Ohm 5% 2W ±100ppm/C Pad SMD Automotive T/R


PMR100HZPJV4L0中文资料参数规格
技术参数

容差 ±5 %

额定功率 2 W

产品系列 PMR

电阻 0.004 Ω

阻值偏差 ±5 %

工作温度Max 155 ℃

工作温度Min -55 ℃

封装参数

封装公制 6432

封装 2512

外形尺寸

长度 6.4 mm

宽度 3.2 mm

封装公制 6432

封装 2512

物理参数

工作温度 -55℃ ~ 155℃

温度系数 ±100 ppm/℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 PB free

数据手册

在线购买PMR100HZPJV4L0
型号: PMR100HZPJV4L0
制造商: ROHM Semiconductor 罗姆半导体
描述:2512 0.004Ω ±5% 2W ±100ppm/℃
替代型号PMR100HZPJV4L0
型号/品牌 代替类型 替代型号对比

PMR100HZPJV4L0

ROHM Semiconductor 罗姆半导体

当前型号

当前型号

PMR100HZPFV4L00

罗姆半导体

类似代替

PMR100HZPJV4L0和PMR100HZPFV4L00的区别
