PA0511.101NLT

120nH ±20% 31A

屏蔽 - 器 0.39 毫欧 非标准 -

得捷:
FIXED IND 120NH 31A 0.39MOHM SMD

艾睿:

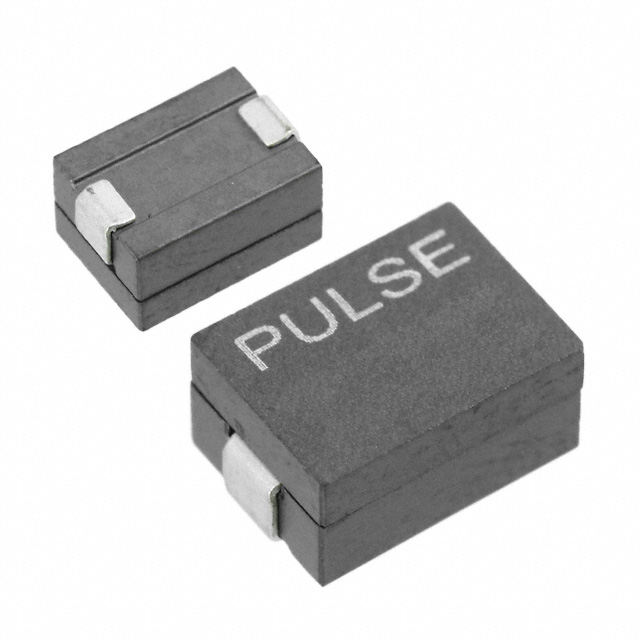

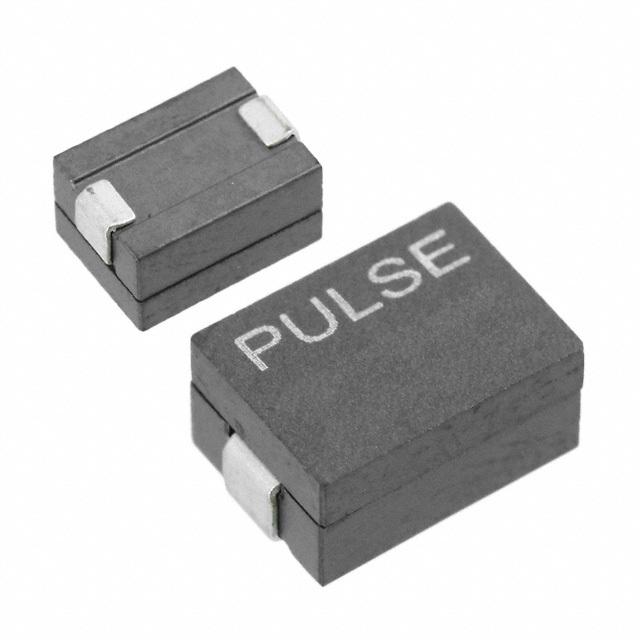

Make any circuit look clean and compact using this power bead PA0511.101NLT surface mount inductor from Pulse. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 130 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. It has a tolerance of 20%. This product is 10.2 mm long, 4.96 mm tall and 7 mm deep. It has an inductance of 120n H. This device is made with wirewound technology. This SMD inductor has a maximum DC current of 31 A with a maximum resistance of 390u Ohm.

安富利:
Ind Power Bead Wirewound 120nH 20% 31A T/R

Verical:
Inductor Power Bead Wirewound 0.12uH 20% 31A 0.00039Ohm DCR T/R

儒卓力:
**PA0511 120nH 20% 31A SMD **

CDI:
SMT POWER BEAD INDUCTOR

Win Source:
120nH Shielded Inductor 31A 0.39 mOhm Nonstandard
