PA2607.231NLT

230nH ±15% 37A

230nH Shielded Inductor 37A 0.29mOhm Nonstandard

立创商城:
230nH ±15% 43A 0.29mΩ

得捷:
FIXED IND 230NH 37A 0.29MOHM SMD

艾睿:

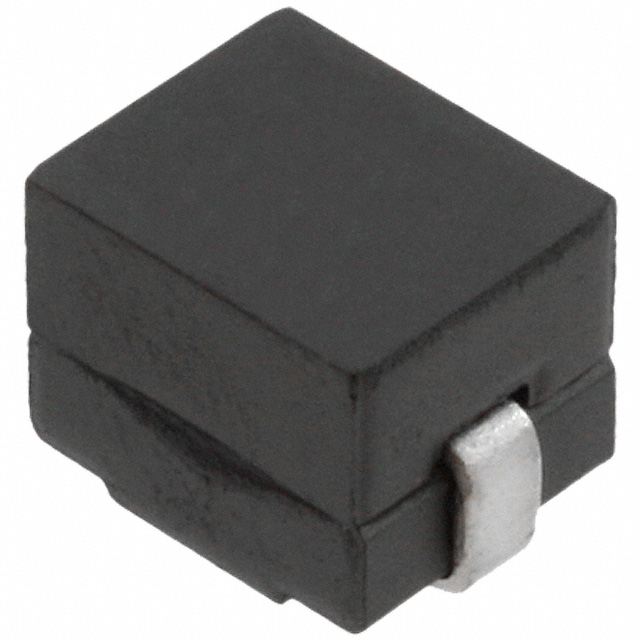

This power bead PA2607.231NLT surface mount inductor from Pulse is ideal for applications where space is a major influence of circuit design. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 130 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This product is 10.41 mm long, 7.5 mm tall and 7.9 mm deep. This device is made with wirewound technology. Its test frequency is 100K Hz. This SMD inductor has a maximum DC current of 37 A with a maximum resistance of 290uTyp Ohm. It has an inductance of 230n/208nRated H. It has a tolerance of 15%.

Verical:
Inductor Power Bead Wirewound 230nH/208nH 15% 100KHz 37A 290uOhm DCR T/R
