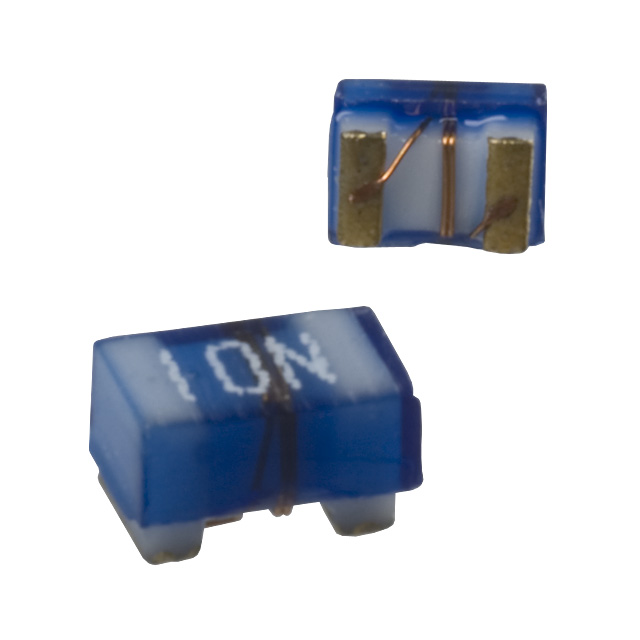

PM0603系列 - 高Q片状电感器 PM0603 Series - High Q Chip Inductors
10 nH 无屏蔽 绕线 器 700 mA 130 毫欧 0603(1608 公制)
得捷:
FIXED IND 10NH 700MA 130MOHM SMD
立创商城:
10nH ±5% 700mA 130mΩ
艾睿:
Does your electronic circuit design require filtering, power supplies, and other similar functions? Then this chip PM0603-10NJ-RC surface mount inductor from Bourns is perfect for you! This SMD inductor has an operating temperature range of -40 °C to 125 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. It has a tolerance of 5%. This product is 1.85 mm long, 1.2 mm tall and 1.25 mm deep. Its test frequency is 250M Hz, while its minimum self-resonant frequency is 4.8G Hz. This device utilizes wirewound technology. It has an inductance of 10n H. This SMD inductor has a maximum DC current of 700m A with a maximum resistance of 130m Ohm.
安富利:
Ind Chip Wirewound 10nH 5% 250MHz 30Q-Factor Alumina 700mA 0603 T/R
Verical:
Inductor Chip Wirewound 10nH 5% 250MHz 30Q-Factor Alumina 700mA 130mOhm DCR 0603 T/R
Electro Sonic:
Inductor RF Wirewound 0.01uH 5% 250MHz 30Q-Factor Alumina 0.7A 0.13Ohm DCR 0603 T/R
额定电流 700 mA
容差 ±5 %
电感 10 nH
自谐频率 4.8 GHz
Q值 30.0
屏蔽 No
电感公差 ±5 %
测试频率 250 MHz
电阻DC) 130 mΩ
工作温度Max 125 ℃
工作温度Min -40 ℃
电阻DC Max 0.13 Ω
安装方式 Surface Mount
封装公制 1608
封装 0603
长度 1.65 mm
宽度 1.05 mm
高度 1.2 mm
封装公制 1608
封装 0603
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
PM0603-10NJ-RC Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
CW160808-10NJ 伯恩斯 | 完全替代 | PM0603-10NJ-RC和CW160808-10NJ的区别 |
PM0603-10NJ 伯恩斯 | 类似代替 | PM0603-10NJ-RC和PM0603-10NJ的区别 |
KQ0603TTE10NJ KOA Speer | 功能相似 | PM0603-10NJ-RC和KQ0603TTE10NJ的区别 |
